Product Description
RAB ALEDXS Field-Adjustable Area Light delivers versatile outdoor illumination with selectable 32W/24W/16W power and 3000K/4000K/5000K CCT, an integrated on/off photocell, and a durable bronze (BZ) finish. The compact XS housing provides full cutoff distribution and reliable performance for pathways, parking areas, and site lighting.

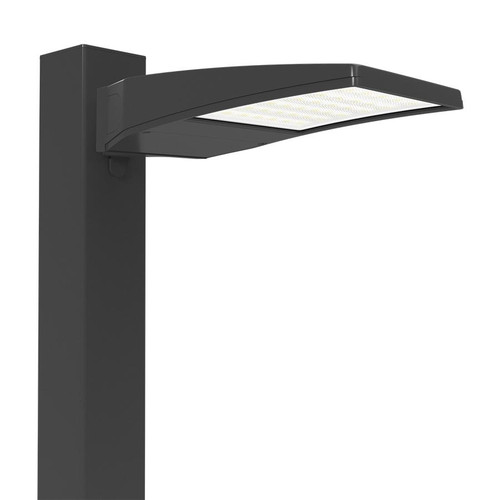

ALEDXS Adjustable LED Area Light (Bronze)
Output: 2,020–4,151 lm (123.8–148.5 lm/W)
Wattage: Field-selectable 32/24/16W (factory default: 24W)
CCT: 3000K / 4000K / 5000K (factory default: 4000K)
Voltage: 120–277V, 50/60 Hz
Photocell: Integrated; switchable ON/OFF
Finish: Bronze (BZ)
Weight: 3.9 lb
Model: ALEDXS (XS size)
Dimming: 0–10V, dims to 10%
Listings: UL Listed for wet locations; Full Cutoff
Warranty: 5-year limited
Shipping: Free shipping on orders over $250
Benefits
- One fixture, many scenarios—select the wattage and color temperature in the field to meet light level and energy targets.
- Automatic dusk-to-dawn control via the integrated photocell (with an on/off switch to disable when needed).
- Clean, neighbor-friendly lighting with a full cutoff optic (no light above 90°) and BUG rating B1 U0 G1.
- Fast installation using the built-in J-box and included wall plate; optional round-pole adaptor kits available.
Key Features
- Field adjustability: 32/24/16W and 3000K/4000K/5000K selector switches inside the housing.
- High efficacy: up to 148.5 lm/W for energy savings.
- Robust electrical design: 0–10V dimming, 2 kV (L-L) / 4 kV (L-G) surge protection, and Dim-to-Off capability.
- Quality construction: die-cast aluminum housing, acrylic lens, high-reflectance polycarbonate reflector.
- Cold-weather ready: starts at -40 °F (-40 °C); rated for 104 °F (40 °C) max ambient.
Specifications
Technical Specs
| Wattage (Selectable) | 32W / 24W / 16W (factory default 24W) |
| CCT (Selectable) | 3000K / 4000K / 5000K (factory default 4000K) |
| Driver | Constant current, Class 2, 120–277V, 50/60 Hz |
| Dimming | 0–10V low-voltage; dims to 10% |
| THD / PF | THD 6.58% @120V, 11.18% @277V; PF 99.5% @120V, 92.3% @277V |
| Input Current | Up to 0.26A @120V (varies by wattage) |
| Photocell | Integrated with on/off switch |
| Surge Protection | L-L 2 kV; L-G 4 kV |
| Aux Power | Aux supply available (Vaux lead) |
Performance Specs
| Lumen Output | 2,020–4,151 lumens |
| Efficacy | 123.8–148.5 lm/W |
| CRI | 82–84 |
| L70 Life | 100,000 hours (TM-21) |
| BUG Rating | B1 U0 G1 (all wattages) |

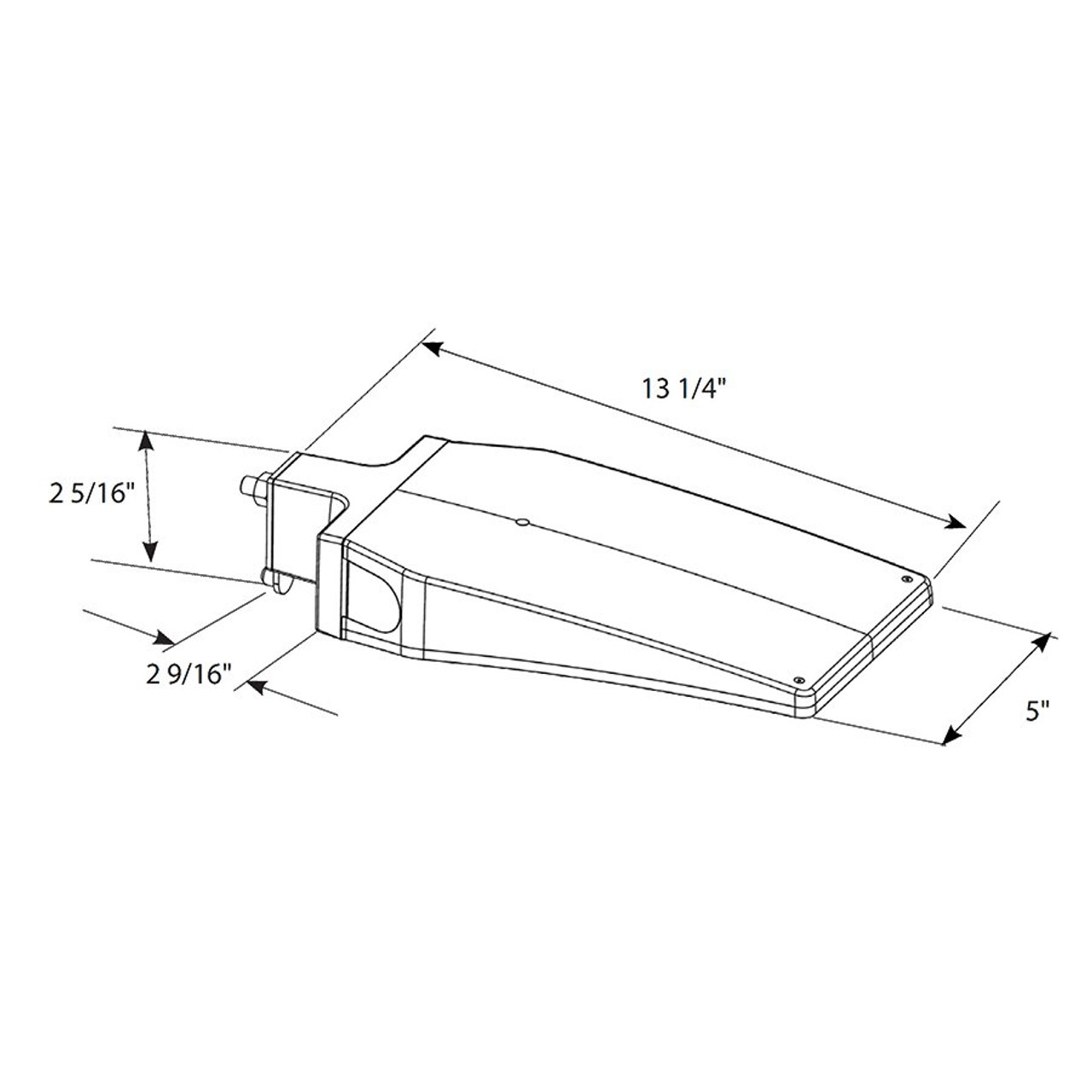

Physical Specs
| Housing | Die-cast aluminum; full cutoff optic |
| Lens | Acrylic lens |
| Reflector | High-reflection polycarbonate |
| Finish | Bronze (formulated for long-lasting color) |
| Weight | 3.9 lb |
Compliance & Safety
| Ratings | UL Listed for wet locations; RoHS-compliant components |
| Operating Temps | Starts at -40 °F (-40 °C); Max ambient 104 °F (40 °C) |
| Color Uniformity | 7-step MacAdam; ANSI C78.377-2017 compliant |
| EPA | Effective projected area 0.1 |
| Warranty | 5-year, No-Compromise warranty |
Application Examples
- Site & area lighting for campuses, retail, and small parking lots.
- Walkways and perimeters where full-cutoff distribution reduces spill light.
- Building approaches and loading zones requiring dusk-to-dawn control.
- Retrofit projects needing field-settable wattage and CCT to match existing layouts.
Installation Tips
- Factory defaults: 24W, 4000K, Photocell OFF. Adjust the selector switches inside the housing before energizing.
- 0–10V dimming: Purple (V+) and Pink (V–). Do not connect dimming leads to line voltage or ground.
- Photocell control: Slide the photocell switch to ON for dusk-to-dawn operation (allow up to 60 seconds to turn off in daylight).
- Mounting: Use the integrated J-box and included wall plate; round-pole adaptor kits are available when needed.
- Lightcloud Blue / MVS option: ALEDXS size supports LCBS/MVS wiring—use Vaux (12V), MVS+, and control leads per diagram.
- Sealing: Ensure all gaskets are fully seated and screws tightened for weatherproof integrity.
FAQ
Q: What light levels and color temperatures can I select?
A: Choose 32W, 24W, or 16W and 3000K, 4000K, or 5000K at the fixture via internal selector switches.
Q: Does the ALEDXS include a photocell?
A: Yes. An integrated photocell is built in, and you can enable or disable it with the on/off switch.
Q: Can I dim the fixture?
A: Yes. It supports 0–10V dimming to 10% using the purple (V+) and pink (V–) low-voltage leads.
Q: Is it suitable for cold climates?
A: The unit starts reliably at -40 °F (-40 °C) and is rated for up to 104 °F (40 °C) ambient.
Q: What surge protection is provided?
A: Built-in surge protection is rated at 2 kV line-to-line and 4 kV line-to-ground.
Q: What mounting hardware is included?
A: An integrated junction box and optional wall plate are included; round-pole adaptors are available separately.
Q: What is the expected service life?
A: LEDs are rated L70 at 100,000 hours under standard test conditions.
Q: Does this model support Lightcloud Blue sensors?
A: Yes. The ALEDXS size supports LCBS/MVS wiring with dedicated Vaux and control leads.
