Product Description

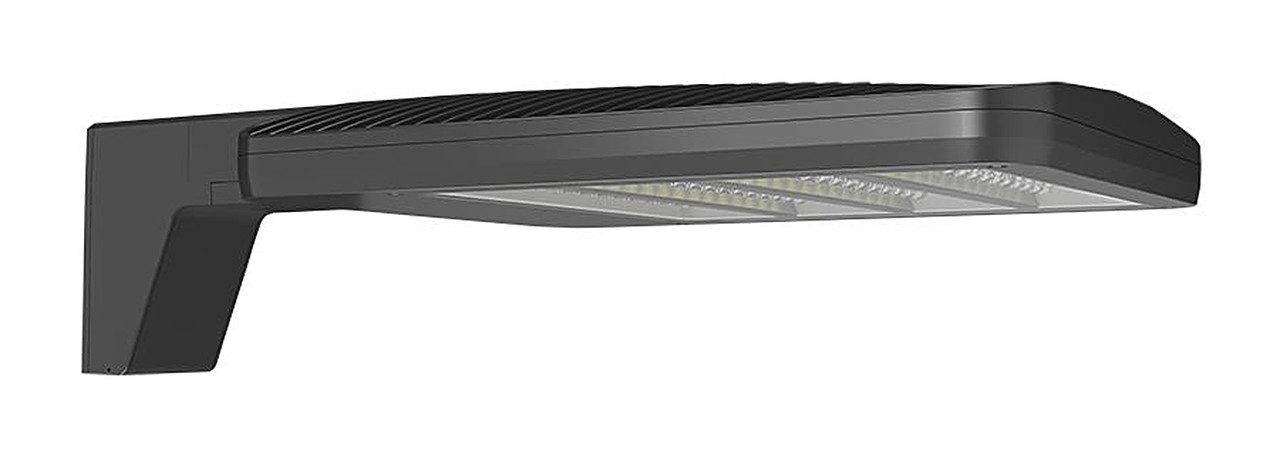

ALEDM3T/480 Area Light by RAB Lighting delivers exceptional field-adjustable illumination for parking lots, roadways, and general area lighting. With its sleek bronze finish and robust design, this Type III distribution fixture is both energy-efficient and durable.
Key Features:
- Field-adjustable wattage: 78W, 90W, or 150W for customized performance.
- Delivers 10,411 lm, 12,584 lm, or 18,998 lm depending on wattage setting.
- 5000K cool white light for clear, bright illumination.
- Precision die-cast aluminum housing with durable bronze finish.
- Type III light distribution ideal for roadways and large outdoor areas.
- 0-10V dimming capability for versatile lighting control down to 10%.
- IP66-rated for excellent protection against dust and water.
- Designed to replace 400W metal halide fixtures with high efficacy.
Specifications:
- Lumen Output: 10,411 lm / 12,584 lm / 18,998 lm
- Color Temperature: 5000K (Cool White)
- CRI: 85 / 85 / 84
- Wattage: 78W / 90W / 150W
- Voltage: 480V
- Dimmable: Yes, compatible with 0-10V systems
- Lifespan: 100,000 hours
- Environment: Wet locations
- Compliance: UL Listed, DLC Premium
- Warranty: 10 years
Installation Tips:
- Ensure power is turned off before installation or maintenance.
- Mount using the included universal mounting arm for compatibility with various pole configurations.
- Adjust wattage and beam angle using the field adjustment switch for optimal performance.
- Apply weatherproof silicone sealant around junction points for additional durability.
- Follow wiring instructions for proper dimming functionality.
Frequently Asked Questions:
Q: What is the field adjustability feature?
A: The fixture allows adjustment of wattage (78W, 90W, or 150W) to match specific lighting needs.
Q: Is this fixture dimmable?
A: Yes, it supports 0-10V dimming down to 10%.
Q: Can this fixture be used outdoors?
A: Yes, it is IP66-rated for dust and water resistance and suitable for wet locations.
Q: What is the expected lifespan of this fixture?
A: It is rated for 100,000 hours of operation.
Q: What mounting options are available?
A: This model comes with a universal mounting arm, compatible with a wide range of pole configurations.
Q: Does this product qualify for energy rebates?
A: Yes, it is DLC Premium listed for maximum energy rebate eligibility.
