Product Description

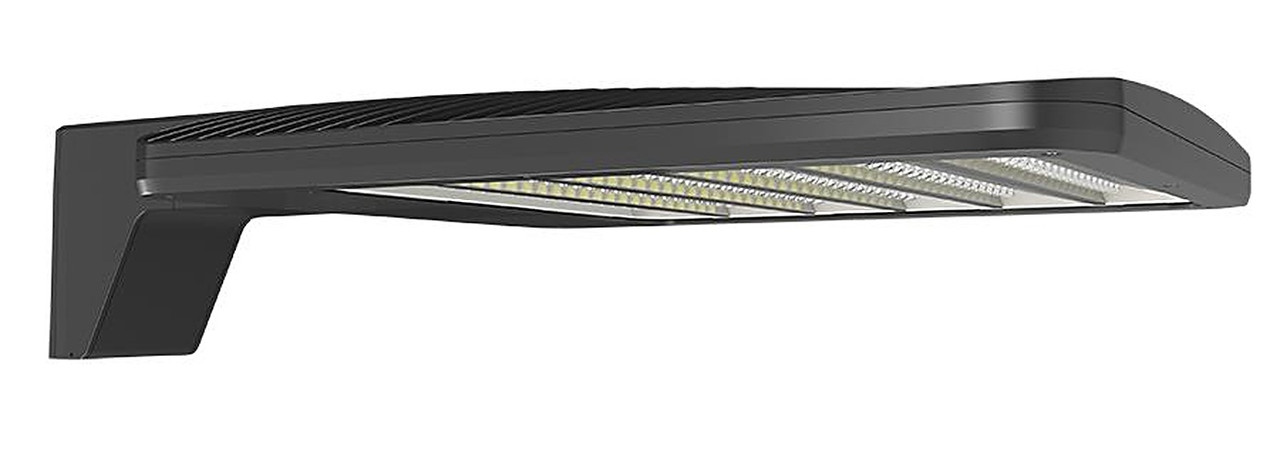

ALEDL4TN ALED 170-220-260W Type IV Area Light by RAB Lighting offers field-adjustable performance, exceptional efficiency, and a sleek bronze finish. Designed for illuminating parking lots, building perimeters, and roadways, this versatile fixture provides precision lighting with energy savings.
Key Features:
- Field-adjustable wattage settings: 170W, 220W, or 260W.
- High lumen output of 25,506 lm, 32,692 lm, or 37,726 lm, depending on wattage.
- Neutral 4000K color temperature for natural illumination.
- Type IV light distribution, ideal for building sides and parking area perimeters.
- IP66-rated for excellent protection against dust and water.
- 0-10V dimming capability for flexible lighting control.
- Durable die-cast aluminum housing with a bronze finish for enhanced longevity.
- 10-year limited warranty for peace of mind.
Specifications:
- Lumen Output: 25,506 lm / 32,692 lm / 37,726 lm
- Color Temperature: 4000K (Neutral)
- CRI: 84 / 84 / 83
- Wattage: 170W / 220W / 260W
- Voltage: 120-277V
- IP Rating: IP66
- Lifespan: 100,000 hours
- Compliance: UL Listed, DLC 5.1 Premium
- Warranty: 10 years
Installation Tips:
- Turn off power before installation or maintenance.
- Adjust the field-adjustable switch to the desired wattage setting before installation.
- Use the universal mounting arm for easy installation on poles with various hole spacing.
- Follow wiring instructions for proper 0-10V dimming functionality.
- Secure all bolts and apply weatherproof silicone sealant for a tight, durable fit.
Frequently Asked Questions:
Q: Is the wattage adjustable?
A: Yes, the fixture allows field adjustment to 170W, 220W, or 260W settings.
Q: What is the lumen output at each wattage setting?
A: The fixture provides 25,506 lm at 170W, 32,692 lm at 220W, and 37,726 lm at 260W.
Q: Is this fixture dimmable?
A: Yes, it supports 0-10V dimming down to 10%.
Q: Can it withstand outdoor environments?
A: Yes, it is IP66-rated for excellent dust and water resistance.
Q: What is the color temperature of this light?
A: The fixture emits a neutral 4000K light.
Q: What mounting options are available?
A: It includes a universal mounting arm and comes with a round pole adapter plate.
Q: What is the warranty for this product?
A: The fixture is covered by a 10-year limited warranty.
