Product Description

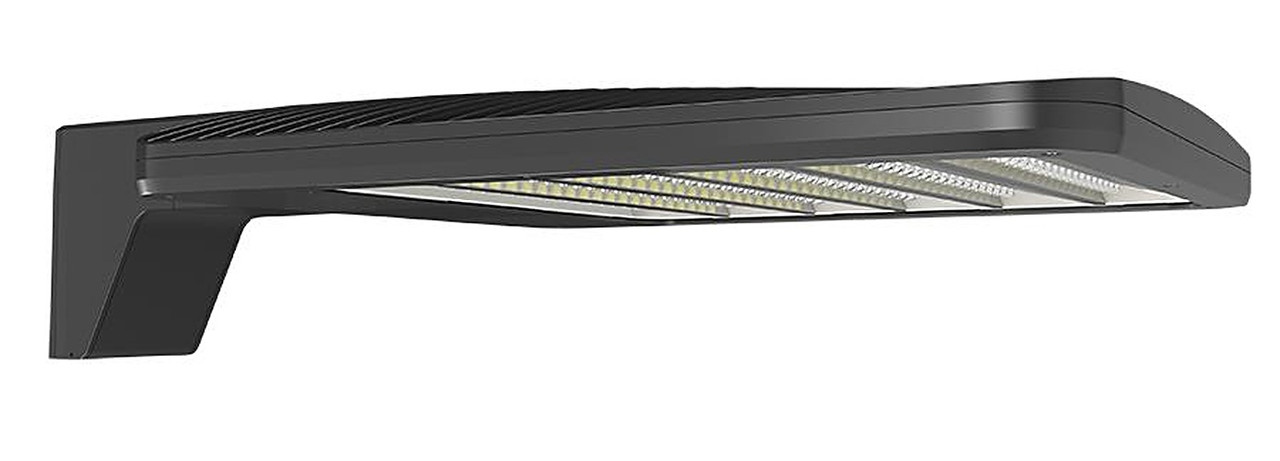

ALEDL2T ALED 170-220-260W Type II Area Light by RAB Lighting delivers powerful, field-adjustable illumination with a sleek design, perfect for large outdoor areas like parking lots, roadways, and walkways. With its bronze finish, this fixture provides excellent durability and modern aesthetics.
Key Features:
- Field-adjustable wattage settings: 170W, 220W, or 260W.
- Impressive lumen output of 24,510 lm, 31,480 lm, or 36,458 lm, depending on wattage.
- Cool 5000K color temperature for crisp, bright illumination.
- High efficacy ranging from 136.3 to 144.4 lm/W.
- IP66-rated for excellent protection against dust and water.
- 0-10V dimming capability for versatile lighting control.
- Durable die-cast aluminum housing with bronze finish for long-lasting color and resistance to wear.
- 10-year limited warranty for peace of mind.
Specifications:
- Lumen Output: 24,510 lm / 31,480 lm / 36,458 lm
- Color Temperature: 5000K (Cool)
- CRI: 84 / 85 / 84
- Wattage: 170W / 220W / 260W
- Voltage: 120-277V
- IP Rating: IP66
- Lifespan: 100,000 hours
- Compliance: UL Listed, DLC 5.1 Premium
- Warranty: 10 years
Installation Tips:
- Ensure power is off before installation or maintenance.
- Adjust the field-adjustable switch to the desired wattage setting before installation.
- Use the universal mounting arm for easy installation on poles with various hole spacing.
- Follow wiring instructions for proper 0-10V dimming functionality.
- Secure all bolts and apply weatherproof silicone sealant for a tight, durable fit.
Frequently Asked Questions:
Q: Is the wattage adjustable?
A: Yes, the fixture allows field adjustment to 170W, 220W, or 260W settings.
Q: What is the lumen output at each wattage setting?
A: The fixture provides 24,510 lm at 170W, 31,480 lm at 220W, and 36,458 lm at 260W.
Q: Is this fixture dimmable?
A: Yes, it supports 0-10V dimming down to 10%.
Q: Can it withstand outdoor environments?
A: Yes, it is IP66-rated for excellent dust and water resistance.
Q: What is the color temperature of this light?
A: The fixture emits a cool 5000K light.
Q: What mounting options are available?
A: It includes a universal mounting arm and comes with a round pole adapter plate.
Q: What is the warranty for this product?
A: The fixture is covered by a 10-year limited warranty.
