Product Description

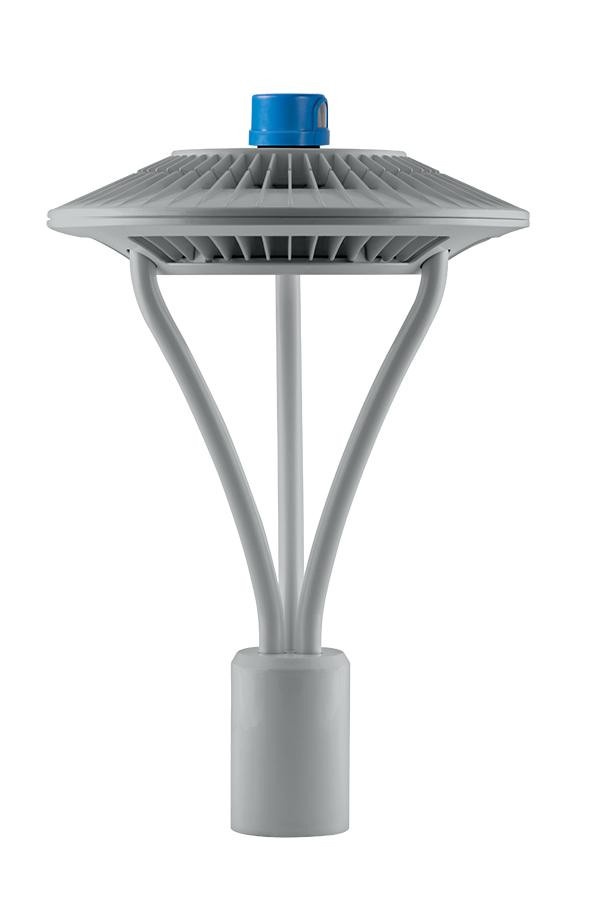

ALED5T78RG/480/PCT4 Area Lights 9673 Lumens ALED Type V 78W 5000K 480V Pole Mount from RAB Lighting is a high-output LED pole-top area light engineered for wide, uniform IES Type V (circular) distribution. Its 360° lighting pattern is ideal for illuminating large outdoor areas like parking lots, corporate parks, and retail settings, while the included 480V twistlock photocell supports dependable dusk-to-dawn performance.
Quick Specs
- Light Output: 9,673 lm
- Wattage: 78W (Input: 78.6W)
- CCT: 5000K
- CRI: 70 CRI
- Voltage: 480VAC, 50/60 Hz
- Distribution: IES Type V (circular), 360° pattern
- Photocell: 480V Twistlock photocell included (compatible with 480V only)
- IP Rating: IP66
- Listings: UL Listed (suitable for wet locations), DLC Listed (DLC 5.1)
- Finish: Gray
Free shipping on orders over $250
Product Benefits
- Uniform site lighting: IES Type V circular distribution creates a wide, even 360° pattern for consistent coverage across large outdoor areas.
- Energy-saving LED performance: 9,673 lm at 78.6W input delivers 123.1 lm/W efficacy—an efficient upgrade path from 250W metal halide.
- Outdoor-ready durability: UL listed for wet locations and IP66-rated to help protect against dust and water intrusion.
- Built for pole-top retrofits: Tenon mounting compatibility with standard 2 3/8" and 3" tenons supports common pole configurations.
Key Features
- High-output LED engine: 6x13W high-output, long-life LEDs
- Long life: 100,000-hour L70 LED lifespan
- 480V electrical package: Constant current, Class 2 driver with 6kV surge protection
- Dusk-to-dawn control: 480V twistlock photocell included
- Thermal design: “Air-Flow” fins for maximum heat dissipation
- Optical performance: Clear tempered glass lens with Type V reflector system
- Peace of mind: 5-year warranty covering light output, color stability, driver performance, and fixture finish
Specifications
Performance
| Lumen Output | 9,673 lm |
| Efficacy | 123.1 lm/W |
| CCT | 5000K (Cool) |
| CRI | 70 CRI |
| L70 Lifespan | 100,000 Hours |
| Distribution | IES Type V (circular) |
| BUG Rating | B3 U0 G2 |
| Wattage Equivalency | Equivalent to 250W Metal Halide |
Technical
| Input Voltage | 480VAC, 50/60 Hz |
| Input Power | 78.6W |
| LED Power | 78W |
| Input Current | 0.17A at 480V |
| Power Factor | 94.5% at 480V |
| THD | 4.81% at 480V |
| Surge Protection | 6kV |
| Photocell | 480V Twistlock photocell included (compatible with 480V only) |
| IP Rating | IP66 |
| UL Listing | UL Listed, suitable for wet locations |
| DLC | DLC Listed (DLC 5.1), DLC Product Code: PTECJFHX |
Physical
| Finish / Color | Gray |
| Weight | 21.8 lbs |
| Effective Projected Area (EPA) | 1.2 |
| Housing | Precision die-cast aluminum, Type V distribution |
| Support Arms | Extruded aluminum |
| Lens | Clear tempered glass |
| Reflector | Specular vacuum-metallized polycarbonate, Type V distribution |
| Gaskets | High-temperature silicone |
| Dimensions | 16" top diameter; 22 1/2" height; 4 1/8"; 12 3/8"; 6" |
| Mounting | Compatible with standard 2 3/8" and 3" tenons |
| Operating Temperature | -40°C to 40°C (-40°F to 104°F) |
| Environmental | Mercury and UV free; RoHS-compliant components |
Applications
- Parking lots: wide, uniform Type V distribution for open-area illumination
- Corporate campuses: site and pathway-adjacent pole-top lighting
- Retail centers: perimeter and lot lighting with 360° coverage
- Municipal and public spaces: parks, plazas, and general outdoor area lighting
- Pole-top retrofits: installs on 2 3/8" and 3" tenons
Installation Tips
- Safety first: Turn power OFF before installing or servicing. Proper grounding is required, and wiring must follow NEC and applicable local codes.
- Tenon fit: The tenon pole adaptor fits 3" or 2 3/8" diameter tenons; use the ALED sleeve when needed for a better fit on 2 3/8" tenons.
- Secure mounting: Ensure housing clips are properly engaged to the rods and tighten the set screws (3) to secure rods at the tenon pole adaptor.
- Strain relief: Use UL-approved connectors and knot wires for strain relief during pole mounting.
- Line wiring: Connect black to LINE, white to COMMON, and ground to supply ground.
- 0-10V dimming (when equipped): For models ordered with a 0-10V dimming option, connect purple to V+ and pink/gray to V-. Cap the yellow lead if present and do not connect. Use control wires rated 300V minimum.
FAQ (SEO-Optimized)
What type of light distribution does the ALED5T78RG/480/PCT4 provide?
This fixture uses IES Type V (circular) distribution to deliver a wide, uniform 360° light pattern designed for large outdoor areas.
How many lumens does this pole-top area light produce?
The ALED5T78RG/480/PCT4 delivers 9,673 lm of high-output LED illumination.
Is this fixture compatible with 480V systems?
Yes. This model is designed for 480VAC, 50/60 Hz operation and includes a 480V twistlock photocell that is compatible with 480V only.
What color temperature and CRI does it have?
This model is specified at 5000K and 70 CRI for crisp, cool outdoor illumination.
Is the fixture rated for outdoor wet locations?
Yes. It is UL Listed for wet locations and features an IP66 ingress protection rating for dust and water.
What mounting type does this area light use?
It is a pole-top tenon mount luminaire and is compatible with standard 2 3/8" and 3" tenons.
Does it qualify for utility rebates?
This product is DLC Listed (designed to meet DLC 5.1 requirements), which may support rebate eligibility through participating programs.
What warranty comes with this fixture?
RAB provides a 5-year warranty that includes coverage for light output, color stability, driver performance, and fixture finish (terms and conditions apply).
