Product Description

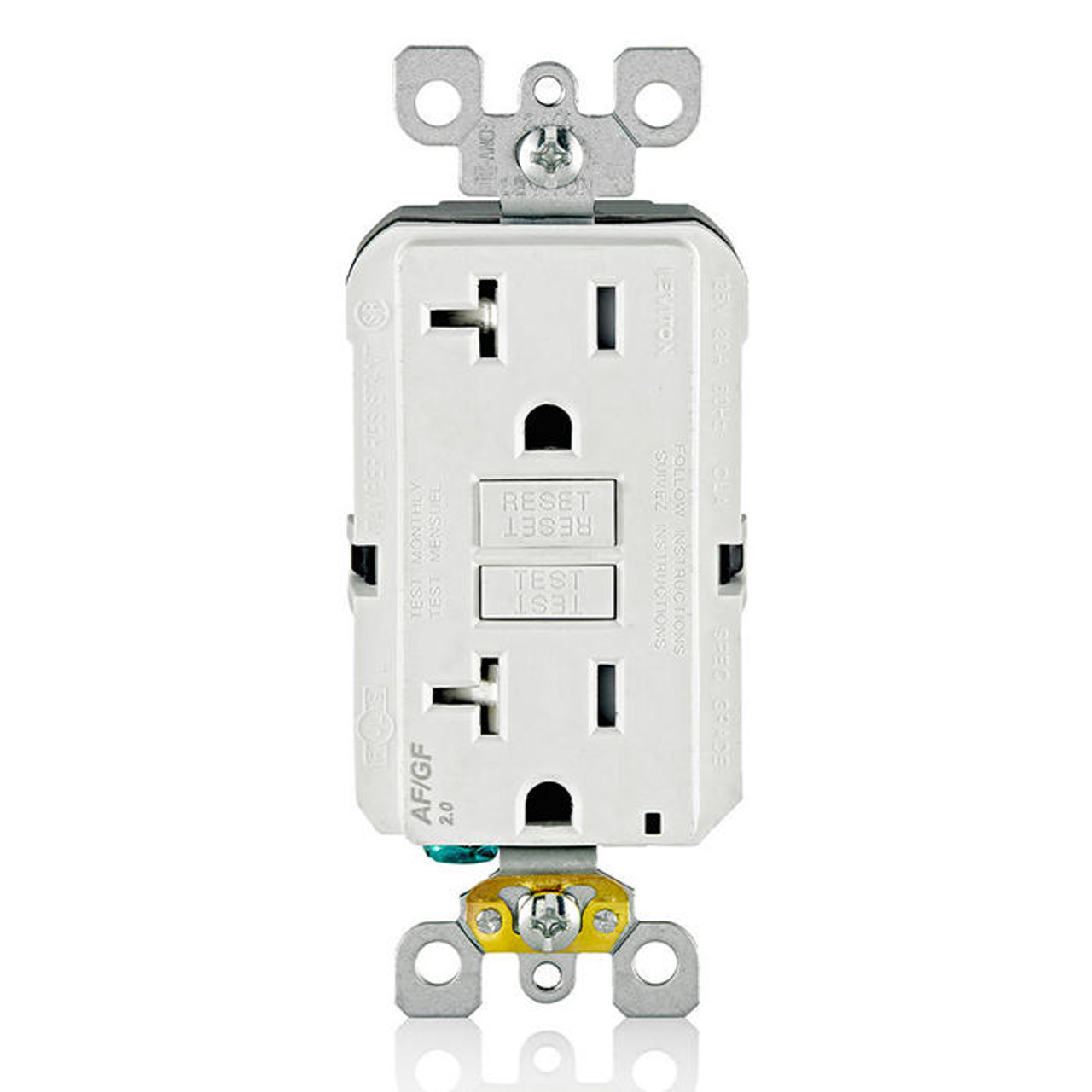

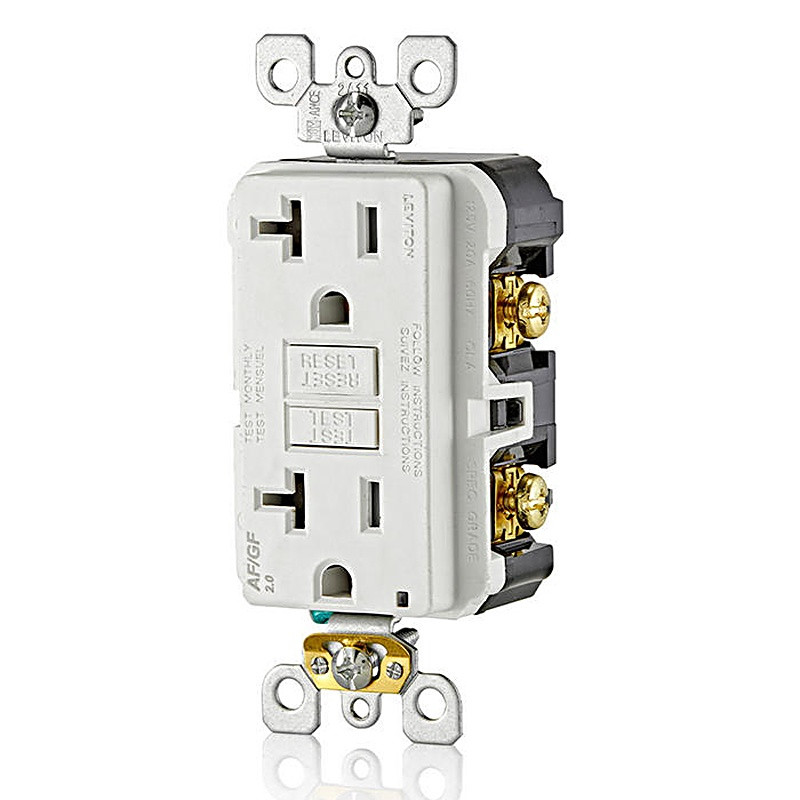

Leviton AGTR2-W SmartlockPro Dual-Function AFCI/GFCI Receptacle (20A) combines arc-fault and ground-fault protection in a single device, delivering both fire and shock protection with convenient on-device TEST/RESET. Tamper-Resistant shutters, auto self-test, status LED, and patented Reset Lockout make it a code-friendly upgrade for kitchens, laundry areas, and renovations.
AGTR2-W 20A AFCI/GFCI Receptacle – White
Receptacle Rating: 20A, 125V (NEMA 5-20R)
Feed-Through Protection: 20A, 125V
Protection: AFCI + GFCI, auto self-test, Reset Lockout
Tamper-Resistant: Yes (TR shutters)
Wiring: Back & side wire; 14–10 AWG copper
Included: Coordinating Decora wallplate
Listings: UL & CSA; meets UL 943, UL 1699A, UL 498
Operating Temp: -35 °C to +66 °C
Warranty: 2-Year Limited
Colors: White, Ivory, Light Almond, Gray, Black, Brown
Shipping: Free shipping on orders over $250
Benefits
- Two protections in one—AFCI helps mitigate arc-fault fire risks while GFCI helps protect from shock.
- Localized TEST/RESET on the device for quick diagnostics without accessing the breaker panel.
- Fewer call-backs with auto self-test, improved noise immunity, surge resistance, and reset lockout.
- Code-compliant option for kitchens, laundry areas, extensions, and replacing ungrounded receptacles.
Key Features
- Status indicator light communicates power, protection, self-test, and line/load reversal status.
- Patented Reset Lockout prevents reset if protection is unavailable or line/load is reversed.
- Tamper-Resistant shutters meet NEC requirements for dwelling units and childcare facilities.
- Bridge contact design isolates face vs. downstream contacts; no power to face if miswired.
- Back & side wire with internal clamp and nine back-wire holes for faster installation.
- Durable build: impact-resistant thermoplastic face, polycarbonate body, zinc-plated steel yoke.
- Decora compatible for clean multi-gang installations; matching wallplate included.
Specifications
Electrical Specs
| Receptacle Rating | 20A, 125V (NEMA 5-20R) |
| Feed-Through | 20A, 125V downstream protection |
| Protection | Dual Function AFCI + GFCI, auto self-test |
| Trip Performance | Meets/exceeds UL thresholds for ground faults and series/parallel arcs |
| Horsepower | 1 HP at rated voltage |
Mechanical & Materials
| Face / Body | Impact-resistant thermoplastic face / Polycarbonate body |
| Contacts & Terminals | 20A copper-alloy triple-wipe face terminals; brass clamps; silver-alloy contacts |
| Yoke | Zinc-plated steel; self-grounding clip |
| Wiring Method | Back & side wire; 14–10 AWG copper or copper-clad only |
| Tamper-Resistant | Yes (TR shutters) |
Environmental & Compliance
| Operating Temperature | -35 °C to +66 °C |
| Flammability | UL94 V-2 (face/body) |
| Standards | UL 943, UL 1699A, UL 498; CSA; ANSI C-73; NEMA WD-6; UL Fed Spec WC-596 |
| Warranty | 2-Year Limited |
Application Examples
- Residential kitchens & laundry areas requiring both AFCI and GFCI protection.
- Replacement of ungrounded receptacles to satisfy NEC requirements with localized protection.
- Renovations & extensions where TEST/RESET at the device is preferred over a dual-function breaker.
Installation Tips
- Identify LINE vs. LOAD before wiring; if reversed, Reset Lockout will prevent operation.
- Use copper or copper-clad wire only (14–10 AWG). Do not use aluminum conductors.
- Back or side wire with the internal clamp; tighten per device instructions.
- Test after install: apply power, press TEST then RESET to verify protection; confirm LED indicates normal status.
- Maintain accessibility so TEST/RESET remains readily accessible as required by code.
FAQ
Q: What does “dual-function” mean on AGTR2-W?
A: It combines AFCI (arc-fault) and GFCI (ground-fault) protection in one receptacle, offering both fire and shock protection at the point of use.
Q: Is AGTR2 different from AGTR1?
A: Yes. AGTR2 is rated 20A with a NEMA 5-20R face, while AGTR1 is a 15A (5-15R) version. Both provide 20A feed-through protection.
Q: How does the status light help?
A: The LED shows normal operation, self-test status, line/load reversal, and trip conditions so you can diagnose issues at a glance.
Q: Does it self-test?
A: Yes. The device periodically performs an automatic internal self-test and continues to provide GFCI protection even during testing.
Q: What is Reset Lockout?
A: A safety feature that blocks resetting if the device isn’t functioning properly, protection is compromised, or line/load are reversed.
Q: Can this replace a dual-function breaker?
A: In many applications, yes. It’s a NEC-compliant option for kitchens and laundry areas and provides localized TEST/RESET convenience.
Q: Is it Tamper-Resistant?
A: Yes—TR shutters help prevent the insertion of foreign objects and meet NEC requirements in dwellings.
Q: What wiring can I use?
A: Back or side wire with 14–10 AWG copper or copper-clad conductors; aluminum wiring is not supported.
