Product Description
Leviton AGTR1-W SmartlockPro Dual-Function AFCI/GFCI Receptacle (15A) combines arc-fault and ground-fault protection in one device, delivering both fire and shock protection with convenient on-device TEST/RESET. Tamper-Resistant shutters, auto self-test, and a status LED make it ideal for kitchens, laundry areas, and code-compliant upgrades.

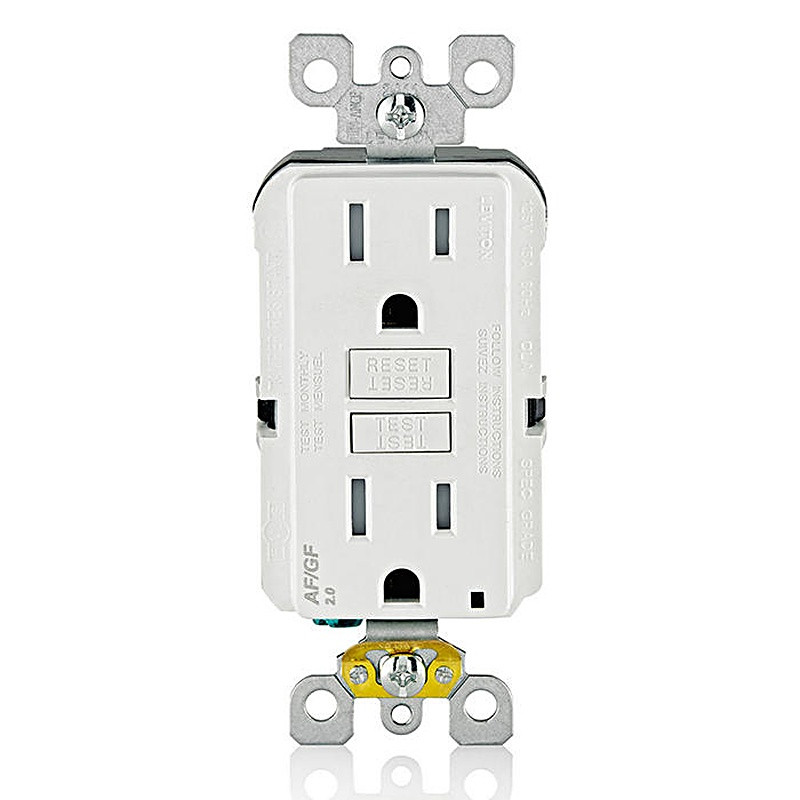

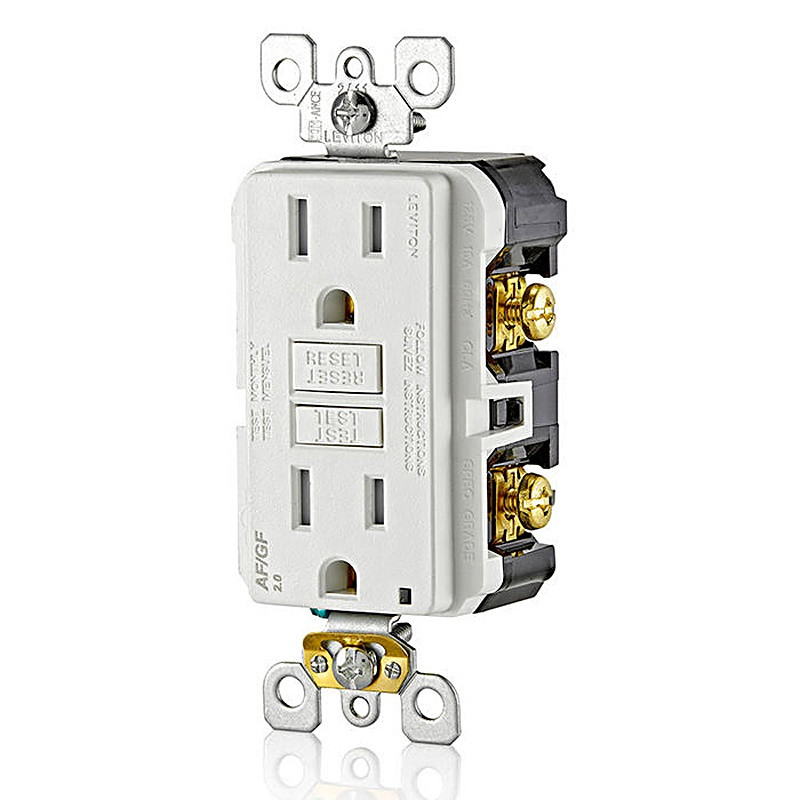

AGTR1-W 15A AFCI/GFCI Receptacle – White
Rating (Receptacle): 15A, 125V (NEMA 5-15R)
Feed-Through Protection: 20A, 125V
Protection: AFCI + GFCI, auto self-test, reset lockout
Tamper-Resistant: Yes (TR shutters)
Wiring: Back & side wire; 14–10 AWG copper
Included: Coordinating Decora wallplate
Listings: UL, CSA; Meets UL 943, UL 1699A, UL 498
Operating Temp: -35 °C to +66 °C
Warranty: 2-Year Limited
Colors: White, Ivory, Light Almond, Gray, Black, Brown
Shipping: Free shipping on orders over $250
Benefits
- Two protections in one—AFCI mitigates arc-fault fire risks while GFCI helps protect from shock.
- Local TEST/RESET on the device for quick troubleshooting without opening the panel.
- Fewer call-backs thanks to self-test diagnostics, improved noise immunity, and reset lockout.
- Code-friendly option for kitchens, laundry areas, and replacing ungrounded receptacles.
Key Features
- Status indicator light shows power and protection state at a glance.
- Patented reset lockout prevents reset if protection is unavailable or line/load is reversed.
- Tamper-Resistant shutters comply with NEC requirements in dwelling units.
- Back & side wiring with internal clamp and nine back-wire holes for faster installation.
- Impact-resistant thermoplastic face; durable polycarbonate body and zinc-plated steel yoke.
- Compatible with Decora wallplates and multi-gang installations; coordinating plate included.
Specifications
Electrical Specs
| Receptacle Rating | 15A, 125V (NEMA 5-15R) |
| Feed-Through | 20A, 125V downstream protection |
| Protection | Dual Function AFCI + GFCI, auto self-test |
| Trip Performance | Meets/exceeds UL thresholds for ground faults and series/parallel arcs |
| Horsepower | 1 HP at rated voltage |
Mechanical & Materials
| Face / Body | Thermoplastic face / Polycarbonate body |
| Contacts & Terminals | Brass double-wipe contacts; brass clamps; plated steel ground screw |
| Yoke | Zinc-plated steel, self-grounding clip |
| Wiring Method | Back & side wire; 14–10 AWG copper or copper-clad only |
| Tamper-Resistant | Yes (TR shutters) |
Environmental & Compliance
| Operating Temperature | -35 °C to +66 °C |
| Flammability | UL94 V-2 (face/body) |
| Standards | UL 943, UL 1699A, UL 498; CSA; ANSI C-73; NEMA WD-6; UL Fed Spec WC-596 |
| Warranty | 2-Year Limited |
Application Examples
- Residential kitchens & laundry areas where combined AFCI/GFCI protection is required or recommended.
- Ungrounded receptacle replacements to satisfy NEC requirements for AFCI and GFCI protection.
- Renovations seeking localized TEST/RESET instead of a dual-function breaker.
Installation Tips
- Identify LINE vs. LOAD conductors before wiring; do not reverse them—reset lockout will prevent operation.
- Use copper or copper-clad wire only (14–10 AWG). Do not use aluminum conductors.
- Back or side wire using the internal clamp for secure terminations; tighten per device instructions.
- Test after install: apply power, press TEST then RESET to verify protection and confirm the LED shows normal status.
- Maintain accessibility so TEST/RESET remains readily accessible as required by code.
FAQ
Q: What does “dual-function” mean on AGTR1-W?
A: It combines AFCI (arc-fault) and GFCI (ground-fault) protection in one receptacle for both fire and shock protection.
Q: Is the device Tamper-Resistant?
A: Yes. It includes Tamper-Resistant shutters to meet NEC requirements in dwelling units.
Q: How does the status light help?
A: The LED indicates power and protection status and can signal line/load reversal or a trip condition for quick diagnostics.
Q: Can this replace a dual-function breaker?
A: In many applications, yes—the receptacle provides localized AFCI/GFCI protection with on-device TEST/RESET, offering a code-compliant option for kitchens and laundry areas.
Q: What downstream rating does it provide?
A: It offers 20A feed-through AFCI/GFCI protection to downstream outlets on the LOAD terminals.
Q: What wiring can I use?
A: Back or side wire with 14–10 AWG copper or copper-clad conductors only.
Q: Is a wallplate included?
A: Yes, it ships with a coordinating Decora wallplate for a finished look.
Q: What colors are available?
A: Common options include White, Ivory, Light Almond, Gray, Black, and Brown to match Decora accessories.
