Product Description

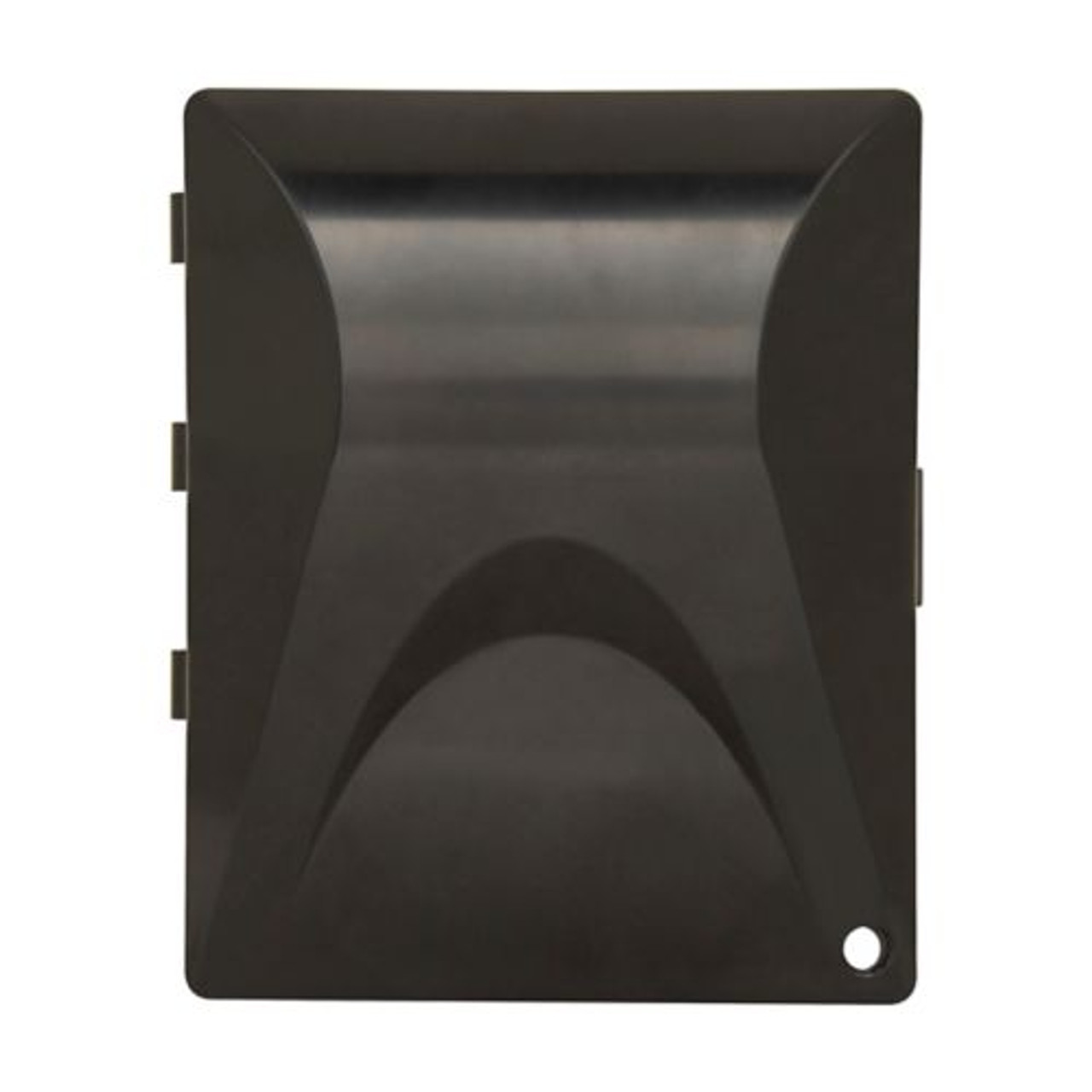

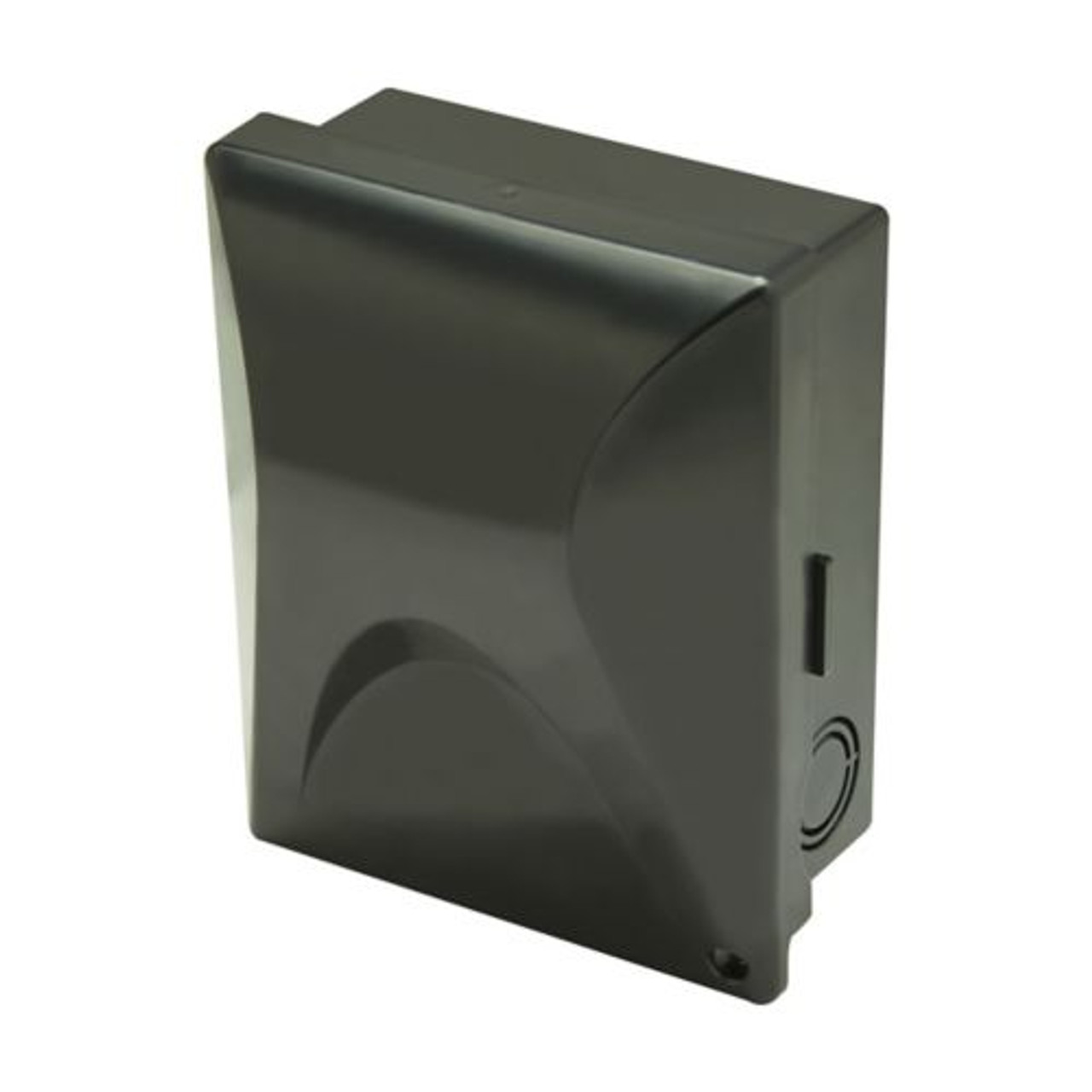

Eaton Air Conditioning Disconnect, 60A Non-Fusible Pullout Device provides a quick, code-compliant means to disconnect power to outdoor HVAC equipment. Catalog number ACD60R features a non-fusible pullout handle in a compact enclosure that’s easy to service and mount near the condenser.
Catalog #: ACD60R
Type: Non-fusible pullout
Amp Rating: 60A
Color: Black
Dimensions (H×W×D): 6.4" × 5.2" × 3.3"
Weight: 0.745 lb
Certifications: UL Listed, CSA Certified
UPC: 786689364137
Application: HVAC service disconnect
Enclosure: Compact, serviceable cover
Mounting: Outdoor adjacent to condenser (per code)
Warranty: Manufacturer’s limited
Perk: Free shipping on orders over $250
Product Benefits
- Simple service disconnect—non-fusible pullout quickly opens the circuit during maintenance.
- Compact footprint saves wall space and fits tight outdoor installs near condensers.
- Listed to UL and CSA for dependable compliance and inspection readiness.
- Clear identification with published UPC and catalog number for fast ordering.
Key Features
- 60A non-fusible pullout design for standard residential and light commercial HVAC units.
- Service-friendly cover for quick access to the pullout and conductors.
- Black finish for a clean, modern look alongside outdoor equipment.
- Lightweight construction (approx. 0.745 lb) for easy mounting.
Specifications
Technical Specs
| Product Type | Air conditioning disconnect |
| Catalog Number | ACD60R |
| Application | HVAC service disconnect (pullout) |
| Color | Black |
Performance / Electrical
| Type | Non-fusible |
| Amp Rating | 60 A |
Physical Specs
| Height | 6.4 in |
| Width | 5.2 in |
| Depth | 3.3 in |
| Weight | 0.745 lb |
Compliance & Safety
| Certifications | UL Listed, CSA Certified |
| UPC | 786689364137 |
Application Examples
- Outdoor condenser service disconnect for split-system air conditioners
- Heat pump outdoor unit disconnecting means
- Residential or light commercial HVAC equipment within sight of the unit
Installation Tips
- Install within sight of the HVAC unit and follow NEC/local codes for location and working clearances.
- Mount the enclosure securely on a flat surface; ensure the pullout handle is fully seated when energized.
- Use conductors sized for the equipment nameplate and the 60A rating; torque lugs per labeling.
- De-energize upstream power and verify absence of voltage before servicing.
Frequently Asked Questions
Q: Is this disconnect fusible?
No. It is a non-fusible pullout type intended as a means of disconnect. Overcurrent protection is provided upstream.
Q: What is the amp rating?
The device is rated for 60 amperes.
Q: Is it suitable for HVAC applications?
Yes, it is designed as an air conditioning service disconnect for condenser or heat pump units.
Q: What are the overall dimensions?
Approximately 6.4 inches high, 5.2 inches wide, and 3.3 inches deep.
Q: What certifications apply?
It is UL Listed and CSA Certified.
Q: What is the catalog number and UPC?
Catalog number ACD60R, UPC 786689364137.
