Product Description
A17-RW ARM A17 Roadway Arm by RAB Lighting is a durable roadway arm accessory designed to mount compatible A17 LED area lights to standard pole tenons for clean, secure outdoor installations. Built for straightforward field setup, it includes an integrated splice box area for wiring and service access.
Product Summary
- Type: Roadway arm accessory for A17 LED area lights
- Mounting: Fits 1", 1.25", 1.5", and 2" pole tenons
- Color: Bronze
- Weight: 5.3 lb
- Compatible Products: A17
Free shipping on orders over $250
Product Benefits
- Flexible pole compatibility: Designed to fit multiple common tenon sizes (1"–2") to simplify specifying and retrofits.
- Cleaner roadway installs: Integrates a splice box area to help keep wiring organized and protected during pole-top installations.
- Built for outdoor conditions: Weatherproof performance depends on properly seated gaskets and tightened hardware for reliable sealing.
- Purpose-built for A17: A dedicated roadway arm accessory designed to pair with A17 LED area lights.
Key Features
- Roadway arm mounting for A17 LED area lights
- Pole tenon fit: 1", 1.25", 1.5", 2"
- Splice box access with cover plate and cap for field wiring
- Arm door with latching access for installation and service
- Bronze finish
Specifications
Technical
| Description | A17 Roadway Arm |
| Mounting | Fits 1", 1.25", 1.5", and 2" pole tenons |
| Compatible Products | A17 |
Physical
| Color | Bronze |
| Weight | 5.3 lb |

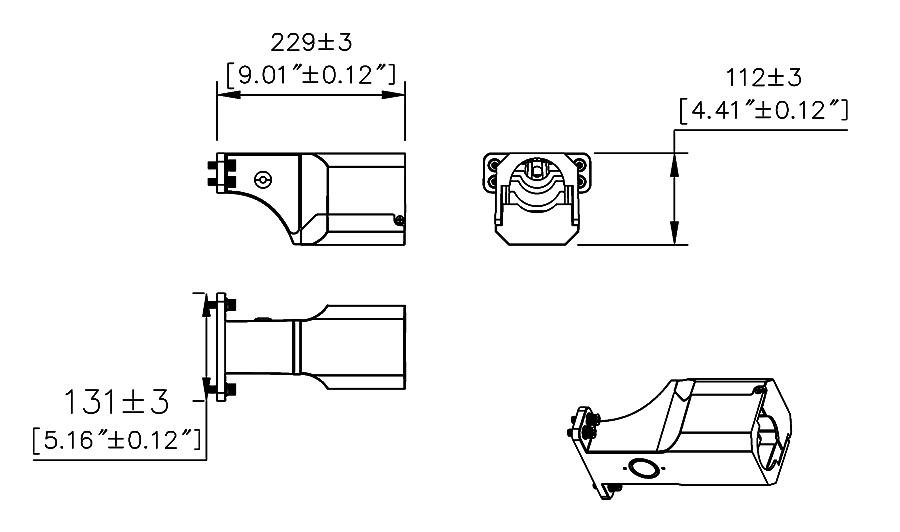

Dimensions
| Length | 229 ± 3 mm (9.01" ± 0.12") |
| Height | 112 ± 3 mm (4.41" ± 0.12") |
| Depth | 131 ± 3 mm (5.16" ± 0.12") |
Compliance
| Buy American Act | Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Contact customer service to request a quote for the product to be made BAA compliant. |
Applications
- Roadway and street lighting pole installations using A17 LED area lights
- Parking lot perimeter poles and drive lanes where a roadway-style arm is preferred
- Municipal, commercial, and industrial exterior lighting upgrades with common tenon sizes
- Retrofit projects requiring compatibility across multiple pole tenon diameters
Installation Tips
- Turn power OFF before installing or maintaining the fixture; no user serviceable parts inside.
- Code compliance: RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes; proper grounding is required for safety.
- Tenon fit: Confirm the pole tenon size (1", 1.25", 1.5", 2") and use the appropriately marked pole mounting clamp.
- Secure mounting: Slide the arm onto the tenon while guiding wires into the splice box, then tighten pole mounting clamps with provided hardware.
- Weatherproof sealing: Ensure all gaskets and the O-ring are in place and seated properly; tighten all screws firmly for proper weatherproof function.
- Strain relief: Make necessary connections in the splice box and knot the wires for strain relief before closing and sealing.
FAQ
What is the A17-RW ARM used for?
The A17-RW ARM is a roadway arm accessory designed to mount compatible A17 LED area lights onto pole tenons for roadway-style installations.
What pole tenon sizes does it fit?
It fits 1", 1.25", 1.5", and 2" pole tenons using the appropriate pole mounting clamp.
Which fixtures are compatible with this roadway arm?
This roadway arm accessory is compatible with RAB A17 LED area lights.
Does the arm include a wiring/splice area?
Yes. The installation instructions reference a splice box area with an arm cover plate for making field connections.
What is the finish and weight?
The roadway arm is bronze and weighs 5.3 lb.
What should I do to maintain weatherproof performance?
All gaskets must be seated properly and all screws inserted and tightened firmly. Ensure the gaskets and O-ring are in place before closing the arm.
Do I need to follow any specific electrical codes?
Yes. RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes, and proper grounding is required for safety.
Is Buy American Act compliance available?
Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Contact customer service to request a quote for a BAA-compliant build.
