Product Description

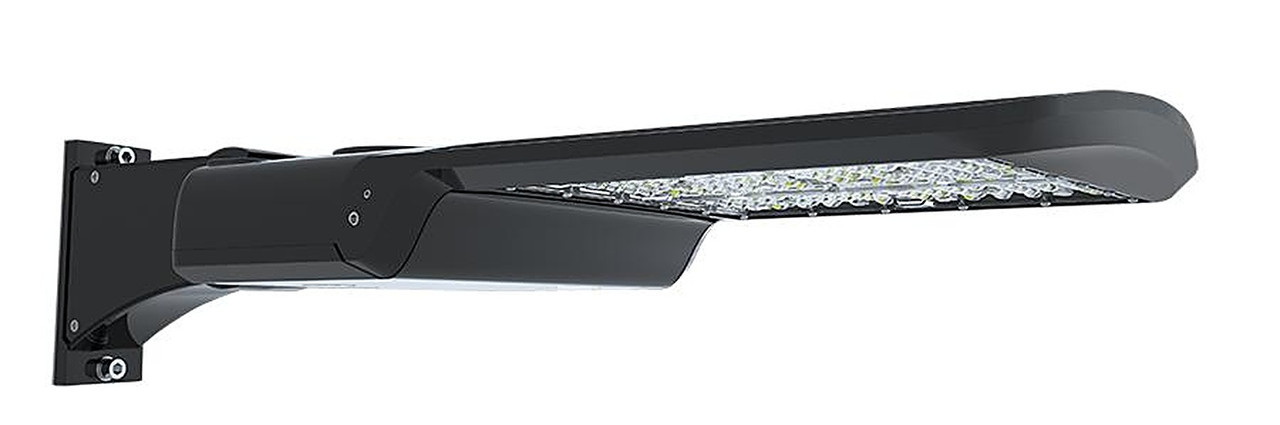

The A17-4T150/480 Arealight by RAB Lighting is a high-output LED fixture designed for pole-mounted outdoor applications. Featuring a Type IV distribution and energy-efficient operation, it provides targeted illumination for large areas like parking lots, roadways, and pathways.
Key Features:
- High-performance output of 21,555 lumens.
- Cool 5000K color temperature for crisp, clear lighting.
- Type IV distribution for wide coverage, ideal for perimeter lighting.
- 0-10V dimming capability for adjustable brightness levels.
- Long-lasting performance with a 100,000-hour LED lifespan.
- Durable die-cast aluminum housing with a polycarbonate lens.
- IP65-rated for superior dust and water resistance.
- DLC Premium listed for energy rebates and compliance with high-efficiency standards.
Specifications:
- Lumen Output: 21,555 lm
- Color Temperature: 5000K (Cool)
- CRI: 73
- Wattage: 150W
- Voltage: 480V
- Dimming: 0-10V, down to 10%
- IP Rating: IP65 (dust and water resistant)
- Lifespan: 100,000 hours
- Compliance: UL Listed, DLC Premium, RoHS compliant
- Warranty: 5 years from RAB Lighting
Installation Tips:
- Mount securely using the universal arm and included round pole adaptor.
- Follow the wiring diagram for 0-10V dimming connections if required.
- Ensure proper grounding and follow NEC codes for safe installation.
- Use the slipfitter for adjustable angles as needed.
Frequently Asked Questions:
Q: What applications is this arealight suitable for?
A: The A17-4T150/480 is ideal for outdoor general-purpose lighting, including parking lots, roadways, and large open areas.
Q: Is this fixture energy-efficient?
A: Yes, it is DLC Premium listed and designed for optimal energy savings.
Q: Does this fixture support dimming?
A: Yes, it includes 0-10V dimming capability down to 10%.
