Product Description

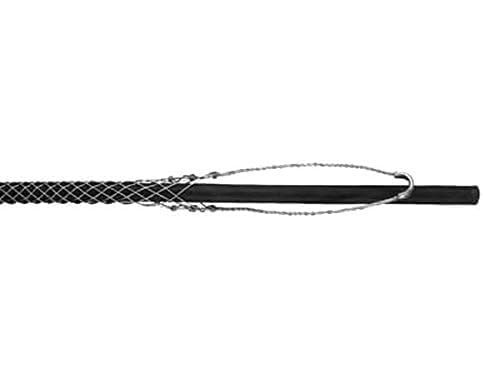

7304-005 Single Eye, Wide Range Bus Drop Grip 0.70-0.85 Inch, Silver is manufactured from high-strength galvanized steel strand for reliable performance in demanding environments. Designed to support flexible cords or bus drop cables in ducts or industrial raceways, this grip effectively absorbs tension, vibration, and pull without damage. A stainless steel version is available upon request for enhanced corrosion resistance.
- Part Number: 7304-005
- Diameter Range: 0.70–0.85 in
- Approx. Breaking Strength: 1400 lbs
- Eye Length: 7 in
- Mesh Length: 6 3/4 in
- Free shipping on orders over $250
Product Benefits
- Protects cables by absorbing tension, vibration, and pull.
- Constructed from high-strength galvanized steel for maximum durability.
- Quick and simple installation for industrial raceways or bus duct applications.
- Optional stainless steel for corrosion-prone environments.
Key Features
- Single eye configuration for straightforward attachment.
- Wide range diameter compatibility for versatile use.
- UL Listed for safety assurance.
- Compatible with bus drop safety springs for enhanced support.
Technical Specifications
| Technical Specs | |
|---|---|
| Part Number | 7304-005 |
| Diameter Range | 0.70–0.85 in |
| Description | BD-070 |
| Approx. Breaking Strength | 1400 lbs |
| Eye Length | 7 in |
| Mesh Length | 6 3/4 in |
| Material | High-strength galvanized steel strand |
Application Examples
- Securing bus drop cables in manufacturing facilities.
- Supporting flexible cords in duct or raceway systems.
- Reducing strain on electrical cable terminations.
- Use with safety springs for suspended cable applications.
Installation Tips
- To use with springs, remove draw bar from coil, thread through eye, and replace draw bar.
- Ensure the cable falls within the specified diameter range for secure grip.
- Inspect the grip for signs of damage prior to installation.
- Install according to UL safety and compliance guidelines.
Frequently Asked Questions
Q: Is this model UL Listed?
A: Yes, UL Listed under category 4D55.
Q: What is the maximum breaking strength?
A: 1400 lbs.
Q: What size cables will it fit?
A: 0.70–0.85 inches in diameter.
Q: Is a stainless steel option available?
A: Yes, available upon request.
Q: Can it be used with bus drop safety springs?
A: Yes, it is fully compatible with them.
Q: Is installation difficult?
A: No, installation is quick and requires minimal tools.
