Product Description

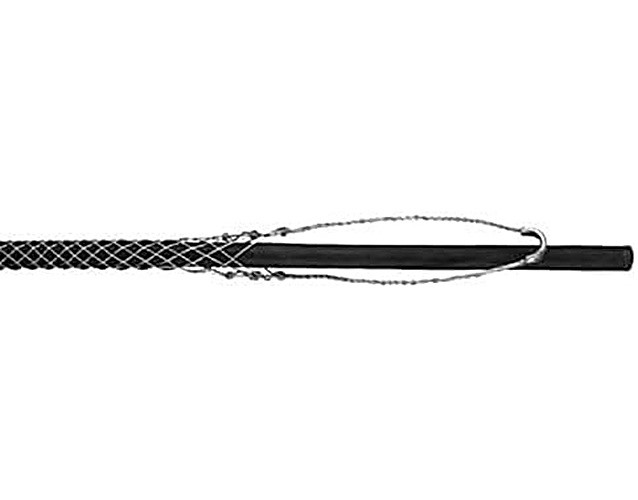

7304-004 Single Eye, Wide Range Bus Drop Grip 0.53-0.73 Inch, Silver is built from high-strength galvanized steel strand for exceptional durability. Designed to support flexible cords or bus drop cables in ducts or industrial environments, this grip absorbs tension, vibration, and pull without damage. Stainless steel versions are available upon request for corrosion-resistant performance.
- Part Number: 7304-004
- Diameter Range: 0.53–0.73 in
- Approx. Breaking Strength: 1400 lbs
- Eye Length: 7 in
- Mesh Length: 6 3/4 in
- Free shipping on orders over $250
Product Benefits
- Prevents cable damage by absorbing tension, vibration, and pull.
- High-strength galvanized steel construction for long-lasting durability.
- Easy to install on bus duct or in industrial raceway applications.
- Available in stainless steel for environments requiring corrosion resistance.
Key Features
- Single eye design for quick attachment.
- Wide diameter range for versatile cable compatibility.
- UL Listed for safety and compliance.
- Compatible with bus drop safety springs for enhanced support.
Technical Specifications
| Technical Specs | |
|---|---|
| Part Number | 7304-004 |
| Diameter Range | 0.53–0.73 in |
| Description | BD-053 |
| Approx. Breaking Strength | 1400 lbs |
| Eye Length | 7 in |
| Mesh Length | 6 3/4 in |
| Material | High-strength galvanized steel strand |
Application Examples
- Supporting bus drop cables in industrial facilities.
- Flexible cord support in cable trays or ducts.
- Electrical raceway cable retention.
- Use with safety springs for suspended cable systems.
Installation Tips
- Disassemble draw bar from coil and place through eye for spring use.
- Ensure correct diameter range for secure grip performance.
- Inspect grip before installation for any damage or wear.
- Follow all UL installation guidelines for safety compliance.
Frequently Asked Questions
Q: Can this grip be used with stainless steel cables?
A: Yes, stainless steel versions are available upon request.
Q: Is it UL Listed?
A: Yes, it is UL Listed under 4D55.
Q: What is the breaking strength of this grip?
A: 1400 lbs.
Q: Can it be used with a bus drop safety spring?
A: Yes, it is compatible with safety springs.
Q: What diameter cables will it fit?
A: 0.53–0.73 inches.
Q: Is the installation complicated?
A: No, it is easily installed and requires minimal tools.
