Product Description

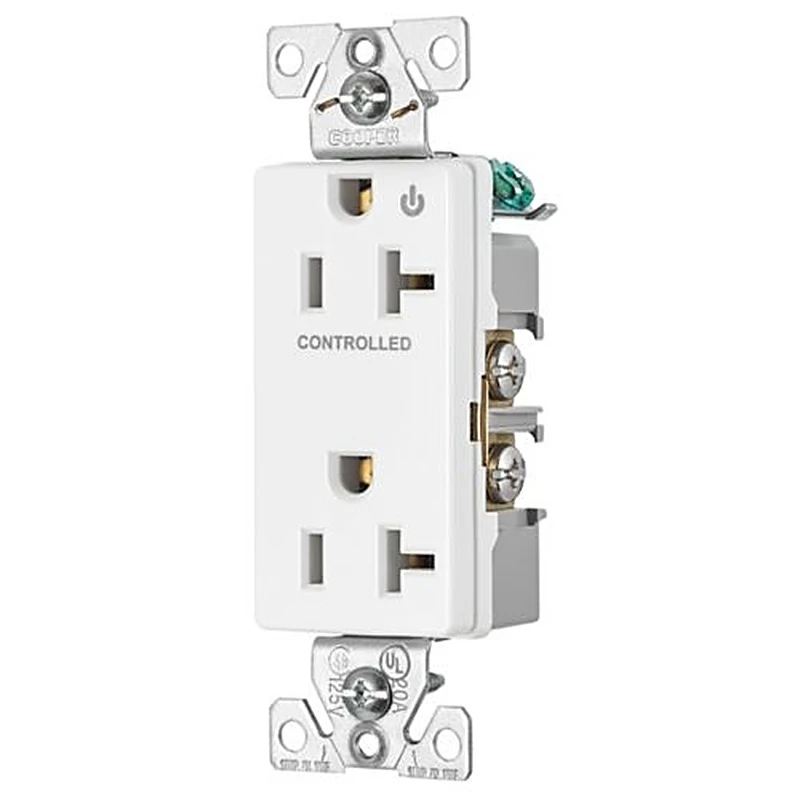

6352CHW from Eaton is a commercial specification-grade decorator duplex receptacle with a controlled, half-control design for energy code compliance. Rated 20A, 125V with two-pole, three-wire grounding, it supports #14–10 AWG conductors and features durable high-impact nylon face with a PVC base. The face is marked “CONTROLLED” for clear identification.
Catalog #: 6352CHW
Rating: 20A, 125V AC
Configuration: NEMA 5-20R, Duplex
Control: Half controlled (one receptacle controlled)
Wiring: Back & side, screw terminals
Allowable Wire: #14–10 AWG
Materials: High-impact nylon face, PVC base; brass contacts
Torque: 14 lbf-in
Style: Decorator (Decora) duplex
Color: White
Listings: cULus Listed; Federal Spec Classification 6233 01
UPC: 032664745058
Perk: Free shipping on orders over $250
Product Benefits
- Energy code ready—half-control design supports automatic shutoff strategies (ASHRAE/IECC) while clearly marking the controlled outlet.
- Fast, flexible terminations with back and side wiring and #14–10 AWG range.
- Durable construction—high-impact nylon face, PVC base, and brass contacts for long service life.
- Decorator style blends with modern plates for clean commercial aesthetics.
Key Features
- NEMA 5-20R duplex with controlled/half-control functionality.
- Two-pole, three-wire grounding; 20A, 125V rating.
- Auto-grounding feature and screw terminal connections.
- 14 lbf-in terminal torque specification for secure connections.
- Commercial specification grade performance in a white decorator form factor.
Specifications
Technical Specs
| Device Type | Decorator duplex receptacle |
| Catalog Number | 6352CHW |
| Control Type | Half controlled (one receptacle is controlled) |
| NEMA Configuration | 5-20R |
| Device Grade | Commercial specification grade |
Physical Specs
| Face / Body Material | High-impact nylon face; PVC base |
| Contact Material | Brass |
| Color | White |
| Dimensions (L×W×H) | 4.38 in × 1.91 in × 1.78 in |
| Weight | 0.22 lb |
Electrical Specs
| Amperage | 20A |
| Voltage | 125V AC |
| Poles / Wires | Two-pole / Three-wire (grounding) |
| Wiring Method | Back and side, screw terminals |
| Allowable Wire Size | #14–10 AWG |
| Terminal Torque | 14 lbf-in |
Compliance & Safety
| Listings / Certifications | cULus Listed; Federal Specification Classification 6233 01 |
| UPC | 032664745058 |
Application Examples
- Commercial offices requiring controlled receptacles for plug load reduction
- Education and healthcare spaces with scheduled or sensor-based shutoff
- Renovations upgrading to decorator style with energy-code compliance
- Open offices, conference rooms, and shared workspaces
Installation Tips
- Follow local code requirements for identifying and wiring the controlled half; confirm control source (relay, sensor, or BAS).
- Use #14–10 AWG conductors; terminate using back or side wiring and torque to 14 lbf-in.
- Bond equipment ground and verify auto-grounding feature engages with metal boxes.
- Use decorator wallplates; label controlled outlets where required by code.
Frequently Asked Questions
Q: What does “half controlled” mean?
One receptacle of the duplex is automatically controlled (e.g., by a sensor, timer, or BAS) while the other remains always on, supporting energy code compliance.
Q: What wiring methods are supported?
Back and side wiring with screw terminals are supported for #14–10 AWG conductors.
Q: What is the NEMA configuration?
NEMA 5-20R straight-blade, decorator duplex.
Q: Is the device rated for commercial use?
Yes, it is a commercial specification-grade receptacle with durable nylon/PVC construction and brass contacts.
Q: What is the terminal torque?
The specified tightening torque is 14 lbf-in.
Q: How is the controlled receptacle identified?
The face is marked “CONTROLLED” for clear occupant and inspector identification.
Q: What certifications apply?
It is cULus Listed and meets Federal Specification Classification 6233 01.
Q: What are the product dimensions?
Approximately 4.38 in (L) × 1.91 in (W) × 1.78 in (H); weight 0.22 lb.
