Product Description

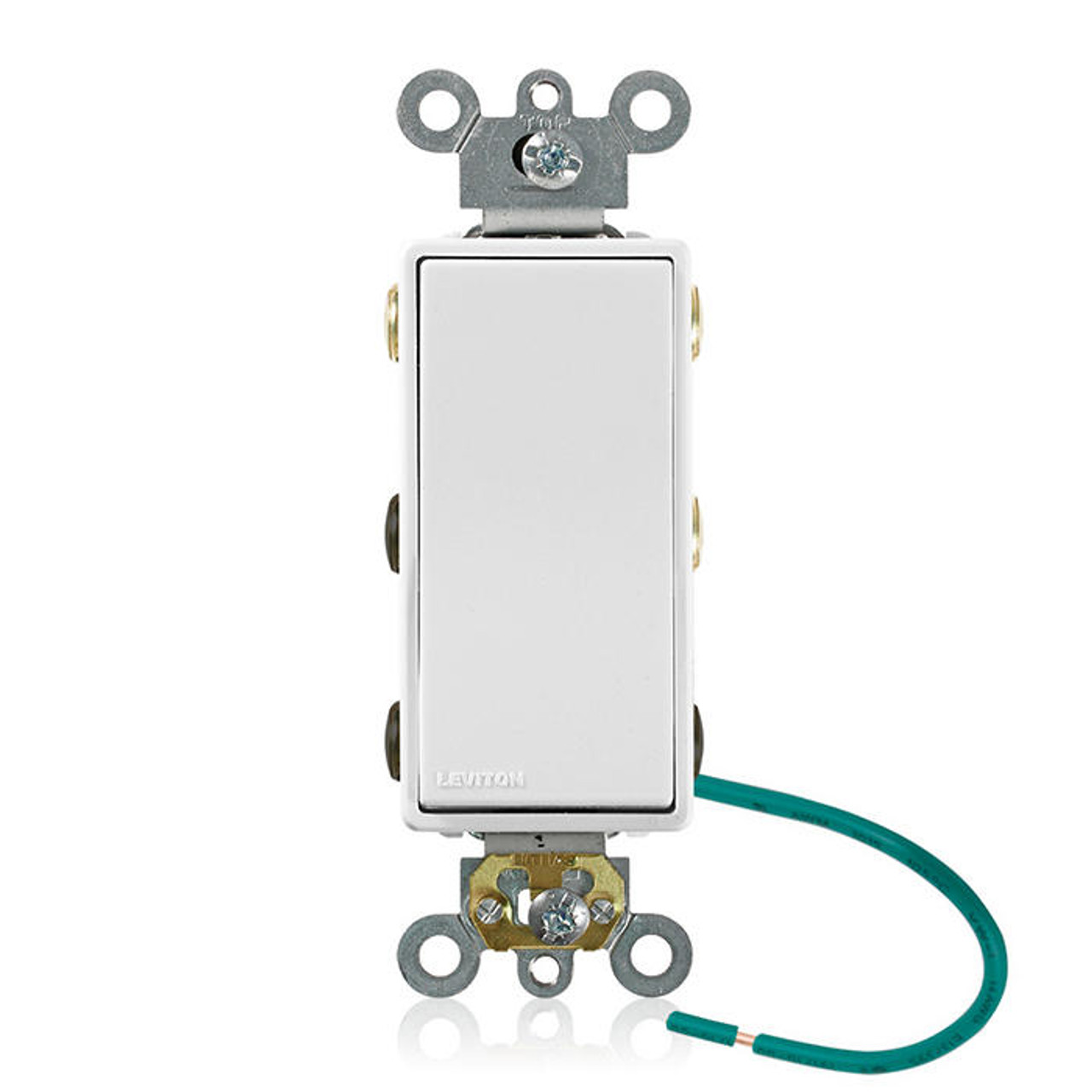

5686-2W DP-DT WHT 20A Switch Maintained Contact - Center Off by Leviton combines commercial-grade durability with versatile functionality. Designed for demanding applications, this Decora Plus rocker switch features a maintained contact with a center-off position and is suitable for residential or commercial use.
Key Features:
- Double-Pole, Double-Throw (DPDT) rocker switch with center-off maintained contact.
- Rated for 15A and 120/277V, supporting a wide range of electrical applications.
- Side and back wiring options for secure and flexible installation.
- Self-grounding for enhanced safety and ease of installation.
- Commercial specification-grade construction for long-lasting performance.
- Compatible with Leviton Decora wallplates for a clean, professional look.
Specifications:
- Amperage: 15A
- Voltage: 120/277V
- Type: Decora Plus Rocker DPDT Switch
- Contact Type: Maintained Contact with Center Off
- Wiring: Back and Side Wired
- Material: Thermoplastic body with a steel strap
- Horsepower Rating: 1/2 HP @ 120V, 2 HP @ 240V/277V
- Operating Temperature: -40°C to 65°C
- Compliance: UL Listed, CSA Certified, ANSI C-73, NEMA WD-1 and WD-6
- Warranty: 10-Year Limited Warranty
Installation Tips:
- Ensure compatibility with your electrical system before installation.
- Use side or back wiring for secure connections with #14-#10 AWG wires.
- Follow the wiring diagram in the included spec sheet for proper setup.
- Pair with a Decora wallplate for a professional and cohesive appearance.
Frequently Asked Questions:
Q: What is a Double-Pole, Double-Throw (DPDT) switch?
A: A DPDT switch allows two circuits to be controlled simultaneously and can switch between two different power sources or circuits.
Q: What does the "center-off" feature mean?
A: The center-off feature provides a neutral position where no circuit is active.
Q: Is this switch suitable for commercial use?
A: Yes, it is designed to meet commercial-grade specifications and is ideal for demanding applications.
Q: What materials are used for this switch?
A: The body is made from impact-resistant thermoplastic, and the strap is made from steel.
Q: What is the operating temperature range?
A: The switch operates between -40°C and 65°C.
