Product Description

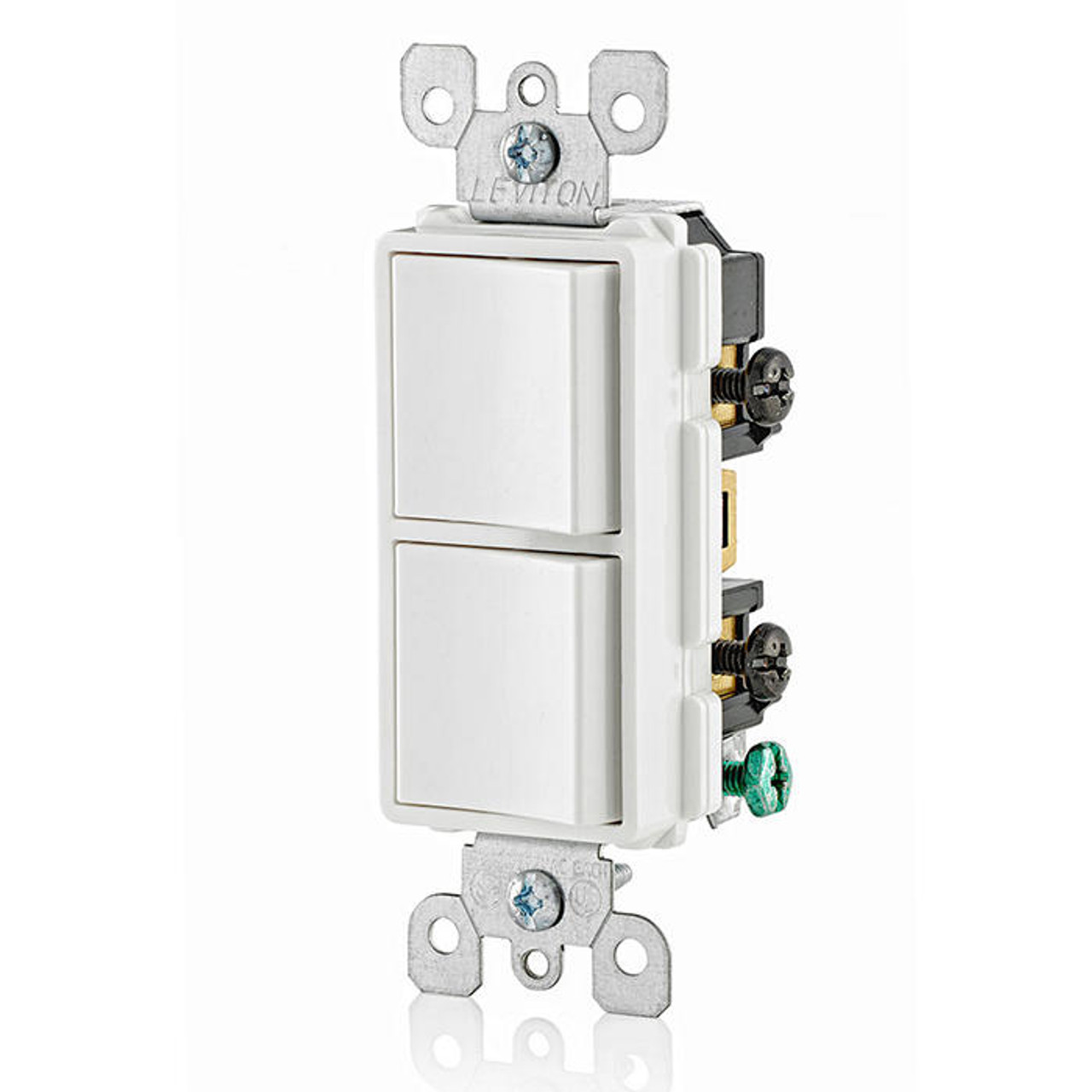

Leviton 5641-W SP & 3-Way White Combination Switch is a dual-function Decora device featuring one single-pole and one 3-way switch in a single unit. Rated at 15A and 120/277 VAC, this residential/commercial specification-grade device combines convenience and durability with modern Decora styling.
Key Specifications:
- Type: Decora Single-Pole / 3-Way Combination Switch
- Rating: 15A, 120/277 VAC
- Horsepower: 1/2 HP @ 120V; 2 HP @ 240–277V
- Grounding: Yes
- Color: White
- Certifications: UL/CSA
- Warranty: 2-Year Limited
- UPC: 078477516683
Free shipping on orders over $250
Product Benefits
- Space-saving design combines single-pole and 3-way functions in one Decora device.
- Durable thermoplastic body with impact resistance for long service life.
- Specification grade for both residential and light commercial use.
- Modern Decora style blends with Leviton wallplates and other Decora devices.
Key Features
- Combination switch: single-pole and 3-way control in one unit.
- Rated 15A at 120/277 VAC with a maximum amperage of 12A.
- Side-wired terminals support secure and reliable connections.
- Steel mounting strap adds strength and stability.
- Available in multiple colors: White, Black, Ivory, and Light Almond.
Specifications
Technical Specs
| Type | Decora Single-Pole / 3-Way Combination Switch |
| Amperage | 15A |
| Voltage | 120/277 VAC |
| Horsepower Rating | 1/2 HP @ 120V; 2 HP @ 240–277V |
| Grounding | Yes |
| Max Amperage | 12A |
| Certifications | UL/CSA |
| Warranty | 2-Year Limited |
| UPC | 078477516683 |
| Country of Origin | Mexico |
Physical Specs
| Actuator Material | Thermoplastic |
| Body Material | Thermoplastic |
| Strap Material | Steel |
| Color | White |
Performance & Wiring
| Termination | Side Wired |
| Torque Range | 14–18 in.-lbs |
| Feature | Single-Pole / 3-Way (2-Switch Combo) |
Application Examples
- Hallways and staircases requiring 3-way lighting plus a single-pole control.
- Kitchens, bathrooms, or utility areas where two switches are needed in one location.
- Renovations or upgrades to modern Decora rocker-style devices.
Installation Tips
- Turn off power at the breaker before wiring.
- Use copper or copper-clad conductors only.
- Maintain torque range of 14–18 in.-lbs for secure connections.
- Pair with Leviton Decora wallplates for a professional finish.
Frequently Asked Questions
Q: What functions does the 5641-W provide?
A: It combines one single-pole switch and one 3-way switch in a single Decora device.
Q: What amperage and voltage is it rated for?
A: 15A at 120/277 VAC, with a maximum of 12A.
Q: What is the horsepower rating?
A: 1/2 HP at 120V and 2 HP at 240–277V.
Q: What colors are available?
A: White, Black, Ivory, and Light Almond.
Q: Is it specification grade?
A: Yes, it is residential/commercial specification grade.
Q: Does it require grounding?
A: Yes, it is a grounding device.
Q: What is the warranty?
A: The switch comes with a limited 2-year warranty.
