Product Description

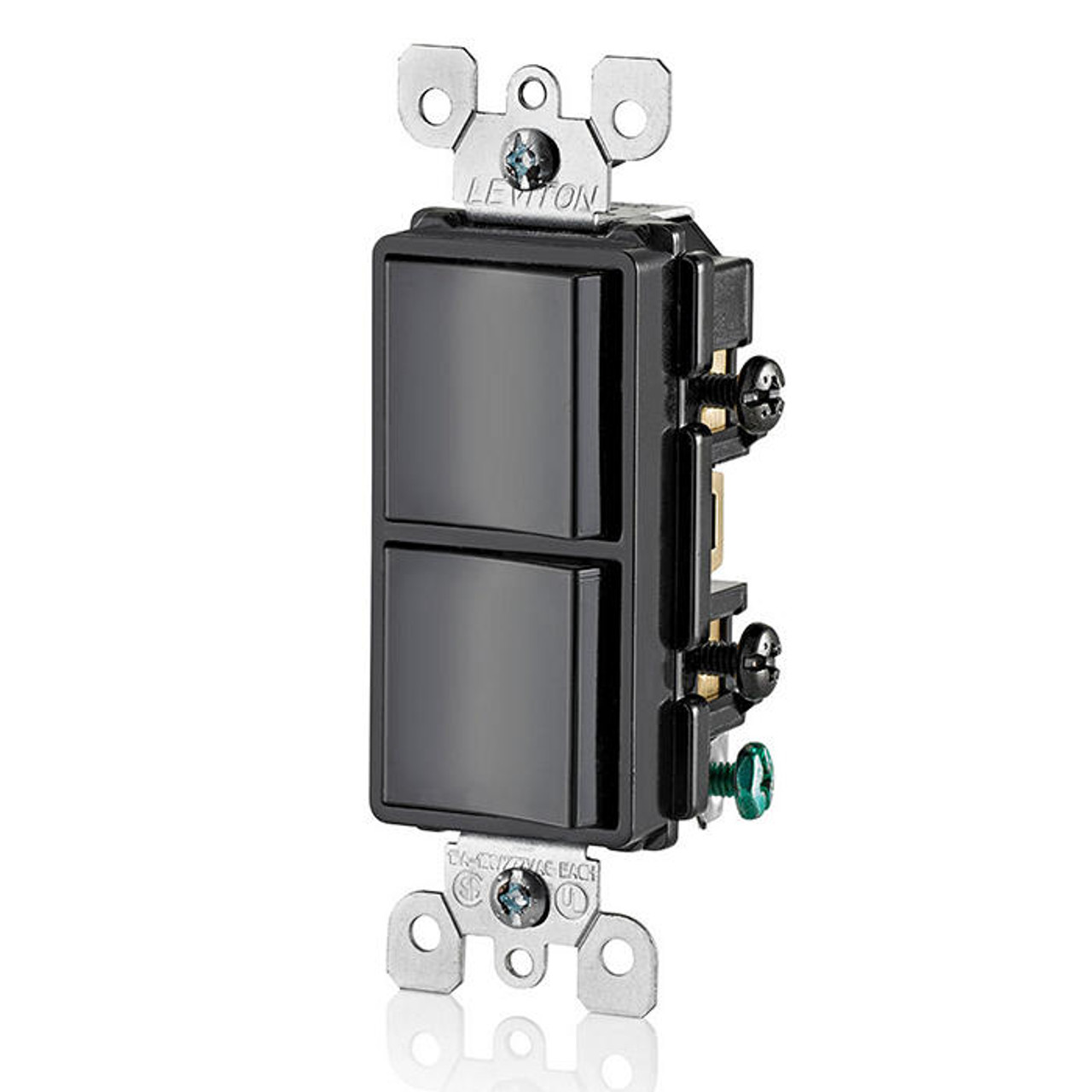

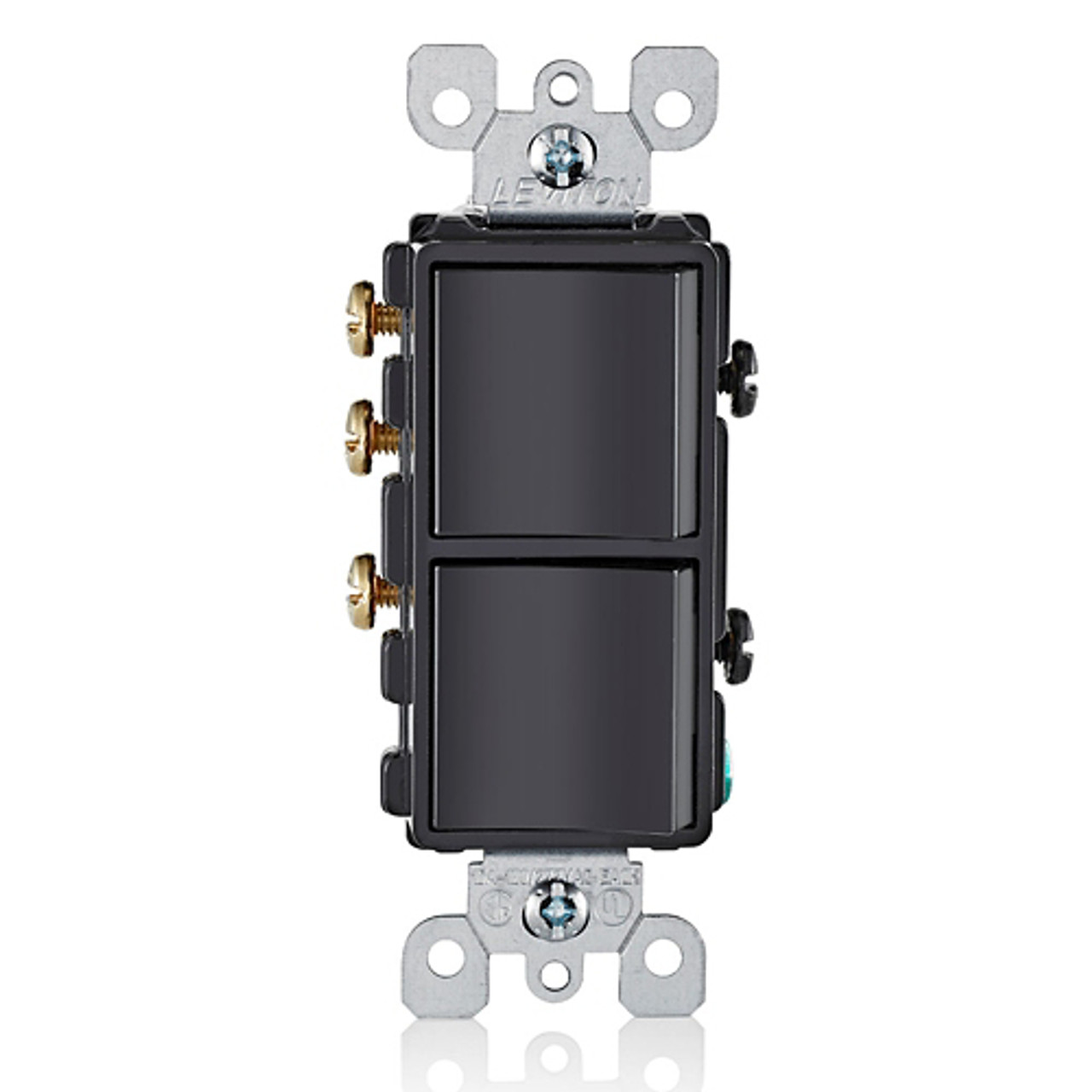

Leviton 5641-E Decora Combo Device is a 15A Decora combination switch featuring one single-pole and one 3-way control in a single compact unit. Designed for both residential and light commercial applications, this space-saving device offers flexibility, durability, and a clean Decora style.
Key Specifications:
- Type: Decora Single-Pole / 3-Way Combination Switch
- Rating: 15A, 120/277 VAC
- Horsepower: 1/2 HP @ 120V; 2 HP @ 240–277V
- Grounding: Yes
- Color: Black
- Certifications: UL/CSA
- Warranty: 2-Year Limited
- UPC: 078477025048
Free shipping on orders over $250
Product Benefits
- Space-saving combo with single-pole and 3-way controls in one device.
- Durable thermoplastic body ensures impact resistance and long service life.
- Residential/Commercial grade for versatile use across multiple applications.
- Modern Decora style pairs seamlessly with matching wallplates.
Key Features
- Combination switch: one single-pole and one 3-way control.
- Rated 15A at 120/277 VAC for reliable performance.
- Side-wired terminals with 14–18 in.-lbs torque range.
- Steel strap for strength and secure mounting.
- Available in multiple finishes: Black, Ivory, Light Almond, White.
Specifications
Technical Specs
| Type | Decora Single-Pole / 3-Way Combination Switch |
| Amperage | 15A |
| Voltage | 120/277 VAC |
| Horsepower Rating | 1/2 HP @ 120V; 2 HP @ 240–277V |
| Grounding | Yes |
| Max Amperage | 12A |
| Certifications | UL/CSA |
| Warranty | 2-Year Limited |
| UPC | 078477025048 |
| Country of Origin | Mexico |
Physical Specs
| Actuator Material | Thermoplastic |
| Body Material | Thermoplastic |
| Strap Material | Steel |
| Color | Black |
Performance & Wiring
| Termination | Side Wired |
| Torque Range | 14–18 in.-lbs |
| Feature | Single-Pole / 3-Way (2-Switch Combo) |
Application Examples
- Hallways and staircases requiring 3-way lighting with an additional single-pole control.
- Kitchens, bathrooms, or living spaces where two switches are needed in one location.
- Upgrades to modern Decora rocker styling in residential and light commercial projects.
Installation Tips
- Always turn off power at the breaker before wiring.
- Use only copper or copper-clad conductors as specified.
- Ensure torque range of 14–18 in.-lbs for secure terminal connections.
- Pair with Leviton Decora wallplates for a finished appearance.
Frequently Asked Questions
Q: What functions does the 5641-E provide?
A: It combines one single-pole switch and one 3-way switch in a single device.
Q: Is it suitable for commercial use?
A: Yes, it is rated as residential/commercial specification grade.
Q: What amperage and voltage does it support?
A: It is rated for 15A at 120/277 VAC, with a maximum amperage of 12A.
Q: What is the horsepower rating?
A: 1/2 HP at 120V and 2 HP at 240–277V.
Q: What colors are available?
A: Available in Black, Ivory, Light Almond, and White.
Q: Does it require grounding?
A: Yes, it is a grounding device.
Q: What warranty is provided?
A: The switch comes with a limited 2-year warranty.
