Product Description

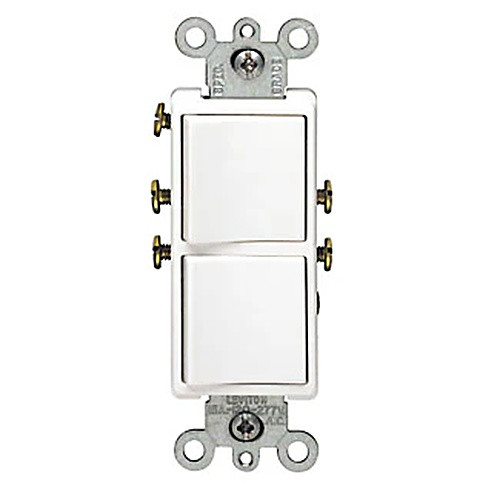

Leviton 5627-W Decora Combo 20A 1P+1P is a commercial-grade combination switch that provides two single-pole controls in one compact Decora device. With its space-saving design, this dual rocker switch is ideal for areas where multiple circuits need to be controlled while maintaining a clean, modern appearance.
Key Specifications:
- Type: Decora Single-Pole / Single-Pole Combination Switch
- Rating: 20A, 120/277 VAC
- Horsepower: 1 HP @ 120V; 2 HP @ 240–277V
- Grounding: Yes
- Color: White
- Certifications: UL/CSA
- Warranty: 2-Year Limited
- UPC: 078477884218
Free shipping on orders over $250
Product Benefits
- Space-saving design provides two switches in the footprint of a single Decora device.
- Durable thermoplastic construction ensures impact resistance and long service life.
- Commercial-grade performance supports higher amperage loads up to 20A.
- Modern Decora styling pairs seamlessly with other Decora devices and wallplates.
Key Features
- Two single-pole switches in one compact Decora combo unit.
- Rated 20A at 120/277 VAC for demanding applications.
- Side-wired terminals provide secure, reliable connections.
- Steel strap for added strength and durability.
- Available in multiple colors: Brown, Ivory, Light Almond, and White.
Specifications
Technical Specs
| Type | Decora Single-Pole / Single-Pole Combination Switch |
| Amperage | 20A |
| Voltage | 120/277 VAC |
| Horsepower Rating | 1 HP @ 120V; 2 HP @ 240–277V |
| Grounding | Yes |
| Max Amperage | 16A |
| Certifications | UL/CSA |
| Warranty | 2-Year Limited |
| UPC | 078477884218 |
| Country of Origin | Mexico |
Physical Specs
| Actuator Material | Thermoplastic |
| Body Material | Thermoplastic |
| Strap Material | Steel |
| Color | White |
Performance & Wiring
| Termination | Side Wired |
| Torque Range | 14–18 in.-lbs |
| Feature | Single-Pole / Single-Pole (2-Switch Combo) |
Application Examples
- Bathrooms and kitchens requiring dual single-pole control in limited space.
- Commercial or residential projects where two circuits need separate control.
- Renovation upgrades to modern Decora rocker-style switches.
Installation Tips
- Turn off power at the breaker before beginning installation.
- Use only with copper or copper-clad wire as per rating.
- Follow torque range of 14–18 in.-lbs for secure connections.
- Install with compatible Decora wallplates for a clean finish.
Frequently Asked Questions
Q: What type of switch is the 5627-W?
A: It is a Decora combination device with two independent single-pole switches.
Q: What amperage is this rated for?
A: It is rated for 20A at 120/277 VAC, with a maximum amperage of 16A per switch.
Q: Can this be used in commercial applications?
A: Yes, it is commercial grade and UL/CSA certified.
Q: What colors are available?
A: It is available in White, Brown, Ivory, and Light Almond.
Q: Does it require grounding?
A: Yes, it is a grounding device.
Q: What is the warranty?
A: It comes with a limited 2-year warranty.
