Product Description

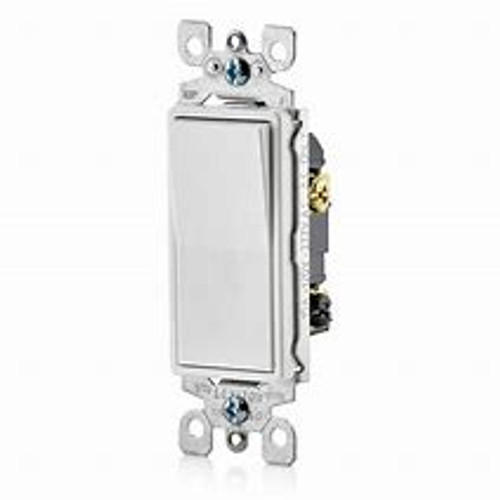

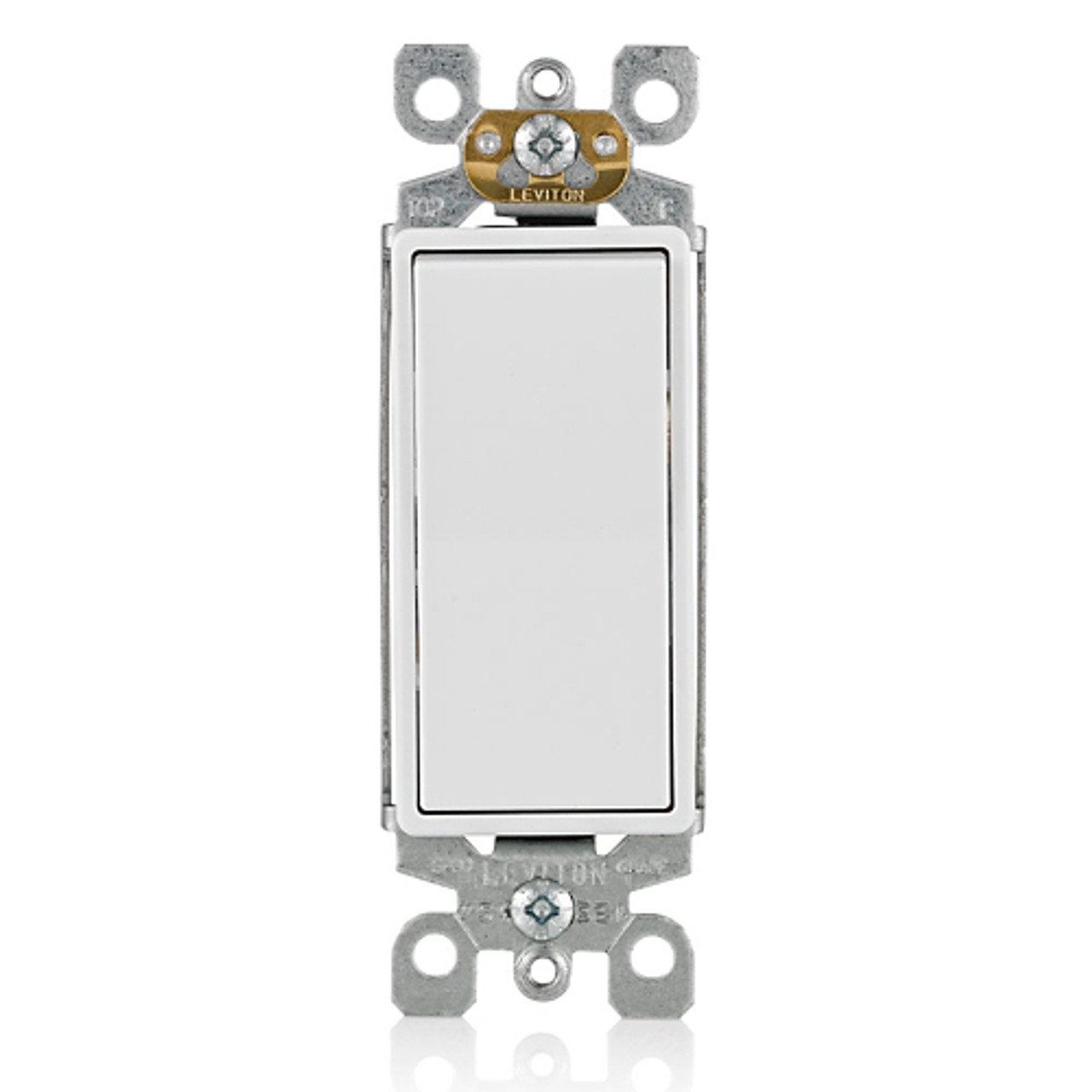

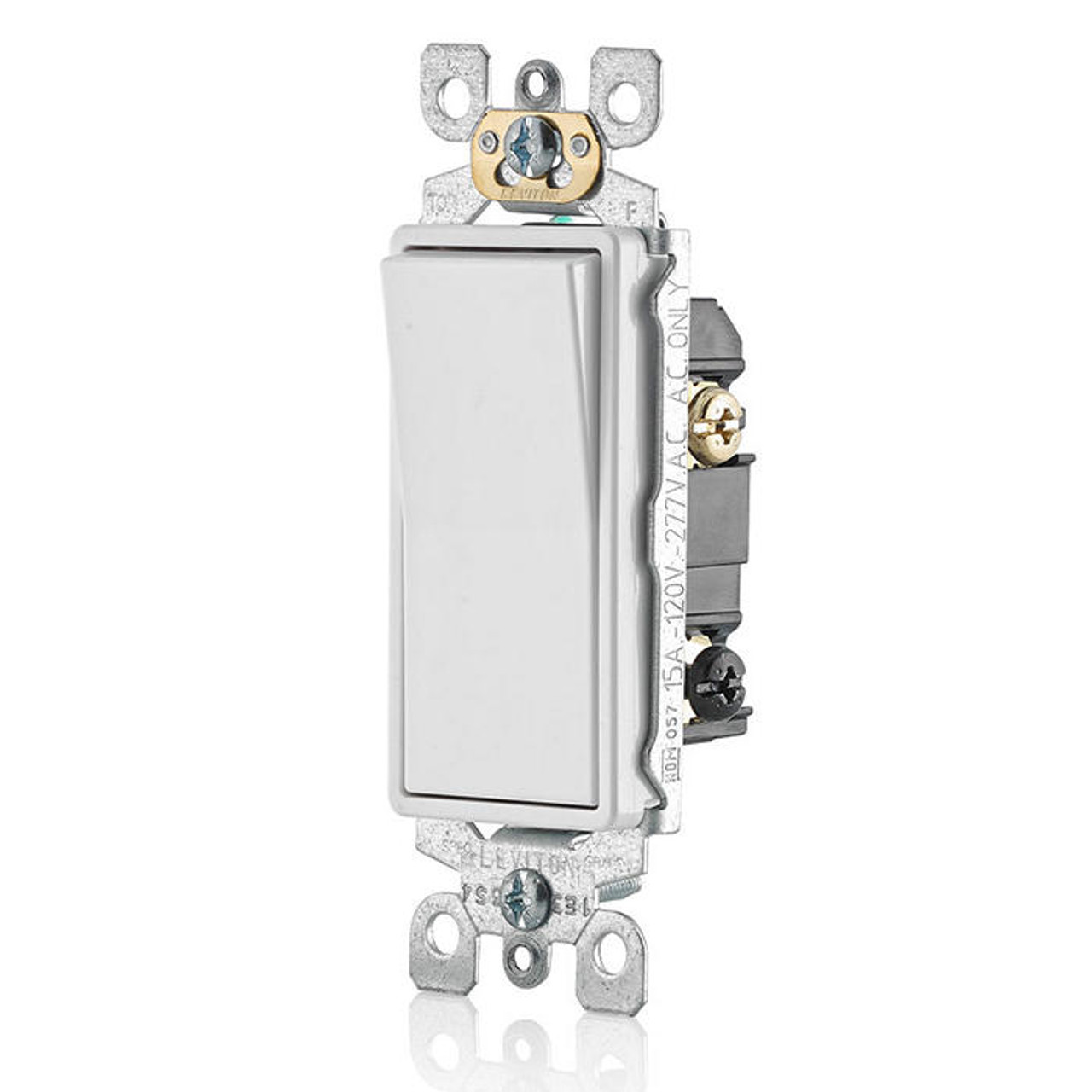

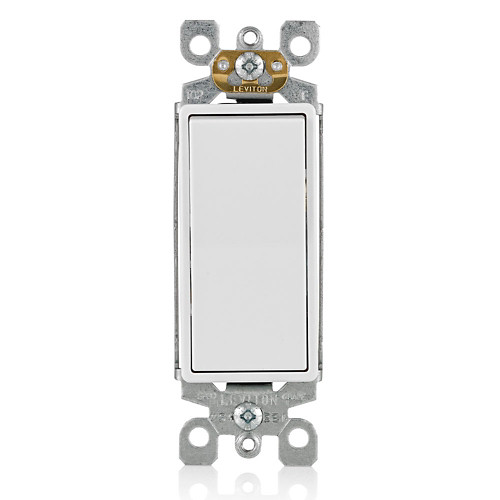

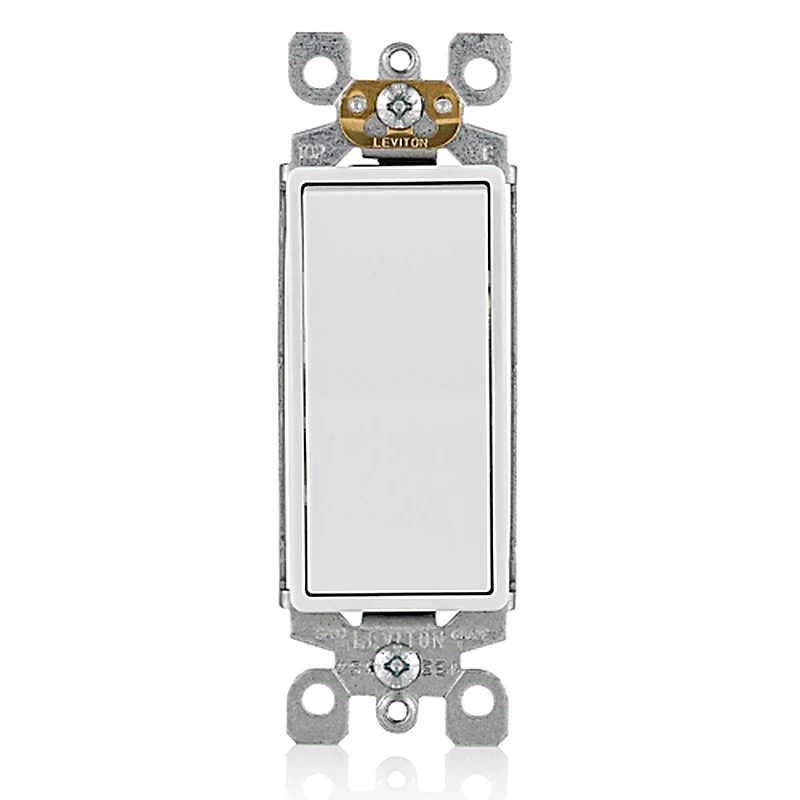

Leviton 5603-2W 3-Way White 15A Switch is a Decora rocker-style AC quiet switch designed for residential use. With a 15A rating at 120/277 VAC, it offers reliable multi-location lighting control while maintaining a modern, clean appearance that complements any décor.
Key Specifications:
- Type: Decora Rocker 3-Way AC Quiet Switch
- Rating: 15A, 120/277 VAC
- Horsepower: 1/2 HP @ 120V; 2 HP @ 240–277V (Max 12A)
- Grounding: Yes
- Color: White
- Certifications: UL/CSA; RoHS Compliant
- Warranty: 2-Year Limited
- UPC: 078477517284
Free shipping on orders over $250
Product Benefits
- Convenient 3-way control of lighting from two locations, ideal for stairways, hallways, and large rooms.
- Durable thermoplastic body with impact-resistant construction ensures long service life.
- Quick installation using Quickwire push-in or side wiring methods.
- Modern Decora design blends seamlessly with Leviton wallplates and home décor.
Key Features
- Quiet rocker action reduces operational noise in residential applications.
- Thermoplastic actuator and body for strength and durability.
- Steel mounting strap provides added support and secure installation.
- Quickwire push-in terminals for #14 AWG solid copper conductors.
- Side wiring terminals accept #10, #12, #14 copper or #10, #12 copper-clad wire.
- Full-rated current capacity with tungsten, fluorescent, or resistive loads.
Specifications
Technical Specs
| Type | Decora Rocker 3-Way AC Quiet Switch |
| Amperage | 15A |
| Voltage | 120/277 VAC |
| Horsepower Rating | 1/2 HP @ 120V; 2 HP @ 240–277V (Max 12A) |
| Pole | 3-Way |
| Grounding | Yes |
| Certifications | UL/CSA; RoHS Compliant |
| Warranty | 2-Year Limited |
| UPC | 078477517284 |
| Country of Origin | United States |
Physical Specs
| Actuator Material | Thermoplastic |
| Body Material | Thermoplastic |
| Strap Material | Steel |
| Color | White |
Performance & Wiring
| Termination | Quickwire Push-In & Side Wiring |
| Terminal Accommodation | Push-in: #14 AWG solid copper; Side: #10/#12/#14 copper or #10/#12 copper-clad |
| Torque Range | 14–18 in.-lbs |
| Load Types | Tungsten, fluorescent, or resistive loads |
Application Examples
- Hallways and staircases requiring lighting control from multiple entry points.
- Large rooms where dual-switch operation is needed.
- Renovations or upgrades from toggle to modern Decora rocker style.
Installation Tips
- Turn off power at the breaker before starting installation.
- Use push-in terminals only with #14 AWG solid copper conductors.
- Use side wiring for #10, #12, or #14 copper and #10, #12 copper-clad conductors.
- Ensure the device is mounted securely to avoid rocker binding.
- Pair with Leviton Decora wallplates for a finished, professional appearance.
Frequently Asked Questions
Q: Is this a 3-way switch?
A: Yes, it controls a single load from two different locations.
Q: What systems is this rated for?
A: It is rated for 120/277 VAC, 15A circuits.
Q: What types of loads can it handle?
A: It supports tungsten, fluorescent, and resistive loads at full rated current.
Q: Do I need a ground wire?
A: Yes, it is a grounding device. (In Canada, a general-use switch in a grounded/bonded flush box may not require a separate ground connection.)
Q: Is it RoHS compliant?
A: Yes, it is RoHS compliant.
Q: What other colors are available?
A: Besides white, it is available in ivory, light almond, brown, black, and gray.
Q: What is the warranty?
A: The switch comes with a limited 2-year warranty.
