Product Description

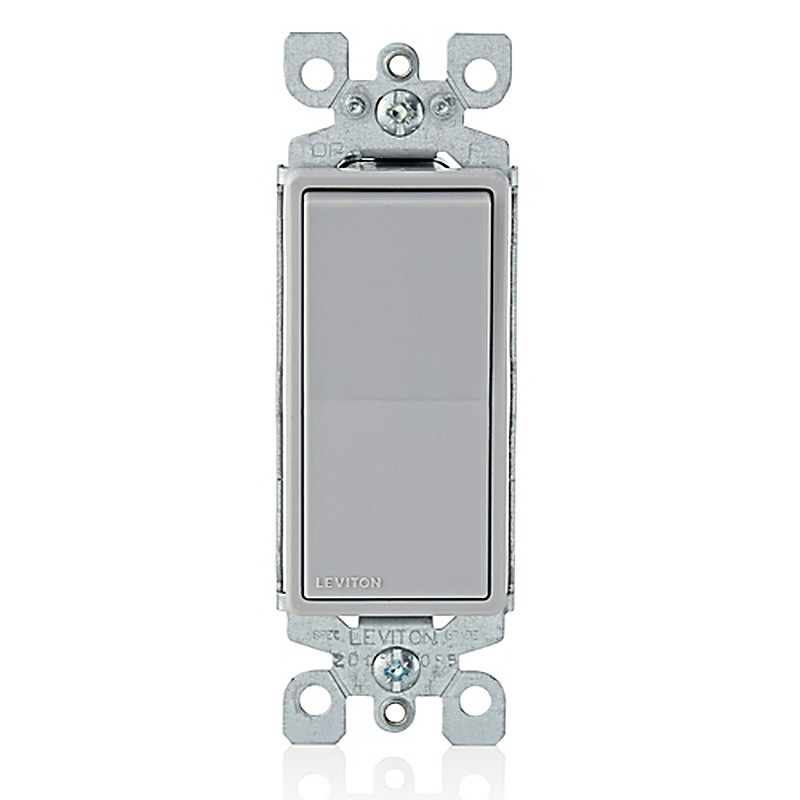

5601-2GY SP Gray 15A Switch by Leviton is a Decora rocker-style single-pole switch rated for 15 Amps and 120/277 Volts. Its quiet action, durable thermoplastic construction, and grounding capability make it a reliable choice for residential and light commercial installations. The sleek gray finish pairs with Decora wallplates for a modern, coordinated look.
Brand: Leviton
Type: Single-Pole Rocker Switch
Amperage: 15A
Voltage: 120/277 VAC
Grounding: Grounding
HP Rating: 1/2HP–120V, 2HP–240/277V
Material: Thermoplastic body & actuator
Strap: Steel
Color: Gray
Termination: Quickwire Push-In & Side
Warranty: 2-Year Limited
Shipping: Free shipping on orders over $250
Product Benefits
- Quiet rocker action for smooth and dependable switching.
- Durable thermoplastic construction resists impact, heat, and daily wear.
- Quickwire push-in and side wiring provide versatile installation options.
- Decora design blends with modern interiors and coordinates with matching wallplates.
Key Features
- Single-pole operation controls load from one location.
- 15A, 120/277 VAC rating suitable for residential and commercial use.
- Horsepower rated: 1/2 HP at 120V, 2 HP at 240–277V.
- Side wiring accepts #10–#14 AWG copper or copper-clad wire; Quickwire push-in accepts #14 solid copper only.
- UL/CSA listed and RoHS compliant for safety and reliability.
Specifications
Technical Specs
| Catalog No. | 5601-2GY |
| Type | Single-Pole Rocker Switch |
| Amperage | 15A |
| Voltage | 120/277 VAC |
| HP Rating | 1/2HP–120V, 2HP–240/277V |
Physical Specs
| Body Material | Thermoplastic |
| Actuator Material | Thermoplastic |
| Strap | Steel |
| Termination | Quickwire Push-In & Side |
| Torque Range | 14–18 in.-lbs |
Compliance & Safety
| Certifications | UL/CSA |
| Environmental | RoHS compliant |
| Warranty | 2-Year Limited |
| Country of Origin | United States |
Application Examples
- Residential lighting control in living rooms, kitchens, and bedrooms.
- Commercial settings requiring reliable UL-listed switches.
- Applications where a gray Decora switch complements the room design.
- Light motor loads with horsepower ratings up to 2HP at 240–277V.
Installation Tips
- Shut off power at the breaker before installation.
- Use side wiring for #10–#14 AWG copper or copper-clad wire; Quickwire push-in for #14 solid copper only.
- Apply correct torque (14–18 in.-lbs) on terminal screws for secure connections.
- Mount in a standard wallbox and finish with a matching Decora wallplate.
FAQ
Does this switch include grounding?
Yes. The 5601-2GY is a grounding switch for added safety.
What loads can it handle?
It supports lighting, resistive, and motor loads—rated 1/2 HP at 120V and 2 HP at 240–277V.
What wire sizes are compatible?
It accepts #10–#14 AWG copper or copper-clad wire for side wiring, and #14 AWG solid copper for Quickwire push-in connections.
Is this part of the Decora line?
Yes. It matches other Decora devices and wallplates for a consistent appearance.
What is the warranty?
This switch includes a 2-year limited warranty.
Where is it manufactured?
The 5601-2GY is manufactured in the United States.
