Product Description

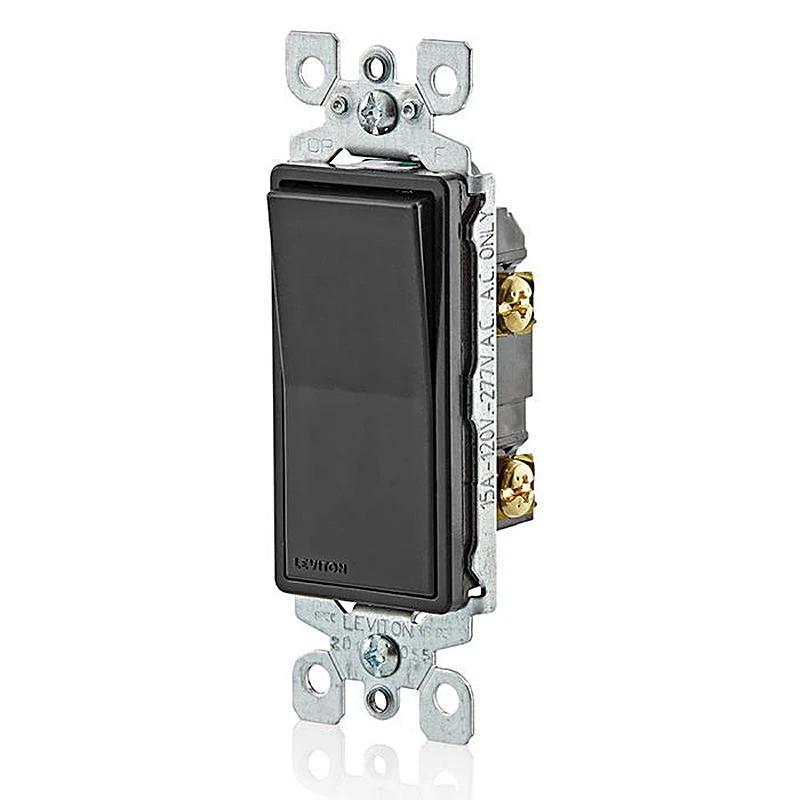

5601-2E SP Black 15A Switch by Leviton is a Decora rocker-style single-pole switch rated at 15 Amps, 120/277 Volts. Built with an impact-resistant thermoplastic body and actuator, it provides quiet operation, reliable performance, and a sleek black finish to complement modern interiors
Brand: Leviton
Type: Single-Pole Rocker Switch
Amperage: 15A
Voltage: 120/277 VAC
Grounding: Grounding
HP Rating: 1/2HP–120V, 2HP–240/277V
Material: Thermoplastic body & actuator
Strap: Steel
Color: Black
Termination: Quickwire Push-In & Side
Warranty: 2-Year Limited
Shipping: Free shipping on orders over $250
Product Benefits
- Quiet operation provides smooth, dependable switching for residential and commercial spaces.
- Durable thermoplastic construction resists impact and wear for long service life.
- Quickwire push-in and side wiring simplify installation with compatibility for multiple wire sizes.
- Decora design pairs perfectly with matching Leviton wallplates for a modern look.
Key Features
- Single-pole design controls a load from one location.
- 15A, 120/277 VAC rating supports both residential and light commercial use.
- HP-rated: 1/2 HP at 120V, 2 HP at 240–277V.
- Side wiring and Quickwire push-in accept #10–#14 AWG copper or copper-clad wire.
- UL/CSA listed and RoHS compliant for safety and environmental standards.
Specifications
Technical Specs
| Catalog No. | 5601-2E |
| Type | Single-Pole Rocker Switch |
| Amperage | 15A |
| Voltage | 120/277 VAC |
| HP Rating | 1/2HP–120V, 2HP–240/277V |
Physical Specs
| Body Material | Thermoplastic |
| Actuator Material | Thermoplastic |
| Strap | Steel |
| Termination | Quickwire Push-In & Side |
| Torque Range | 14–18 in.-lbs |
Compliance & Safety
| Certifications | UL/CSA |
| Environmental | RoHS compliant |
| Warranty | 2-Year Limited |
| Country of Origin | United States |
Application Examples
- Residential rooms such as bedrooms, living rooms, and kitchens for reliable lighting control.
- Commercial spaces where a durable, UL-listed switch is required.
- Applications requiring compatibility with Decora wallplates for a consistent aesthetic.
- Light motor loads with horsepower ratings up to 2HP at 240–277V.
Installation Tips
- Shut off power at the breaker before installation.
- Use side wiring for #10–#14 AWG copper or copper-clad wire; Quickwire push-in for #14 solid copper only.
- Apply correct torque (14–18 in.-lbs) on terminal screws for secure connections.
- Pair with a Decora wallplate to complete installation.
FAQ
Is this switch grounded?
Yes. The 5601-2E includes grounding for safe installation.
What wire sizes are supported?
It accepts #10–#14 AWG copper or copper-clad wire for side wiring, and #14 AWG solid copper for Quickwire push-in connections.
What loads can this switch handle?
It supports general lighting loads and is rated up to 1/2 HP at 120V and 2 HP at 240–277V.
Can I use this switch in commercial applications?
Yes. Its 120/277V rating and UL/CSA certification make it suitable for residential and light commercial use.
Is it part of the Decora line?
Yes. It is designed to complement Leviton Decora wallplates and devices.
What is the warranty?
This switch comes with a 2-year limited warranty.
