Product Description

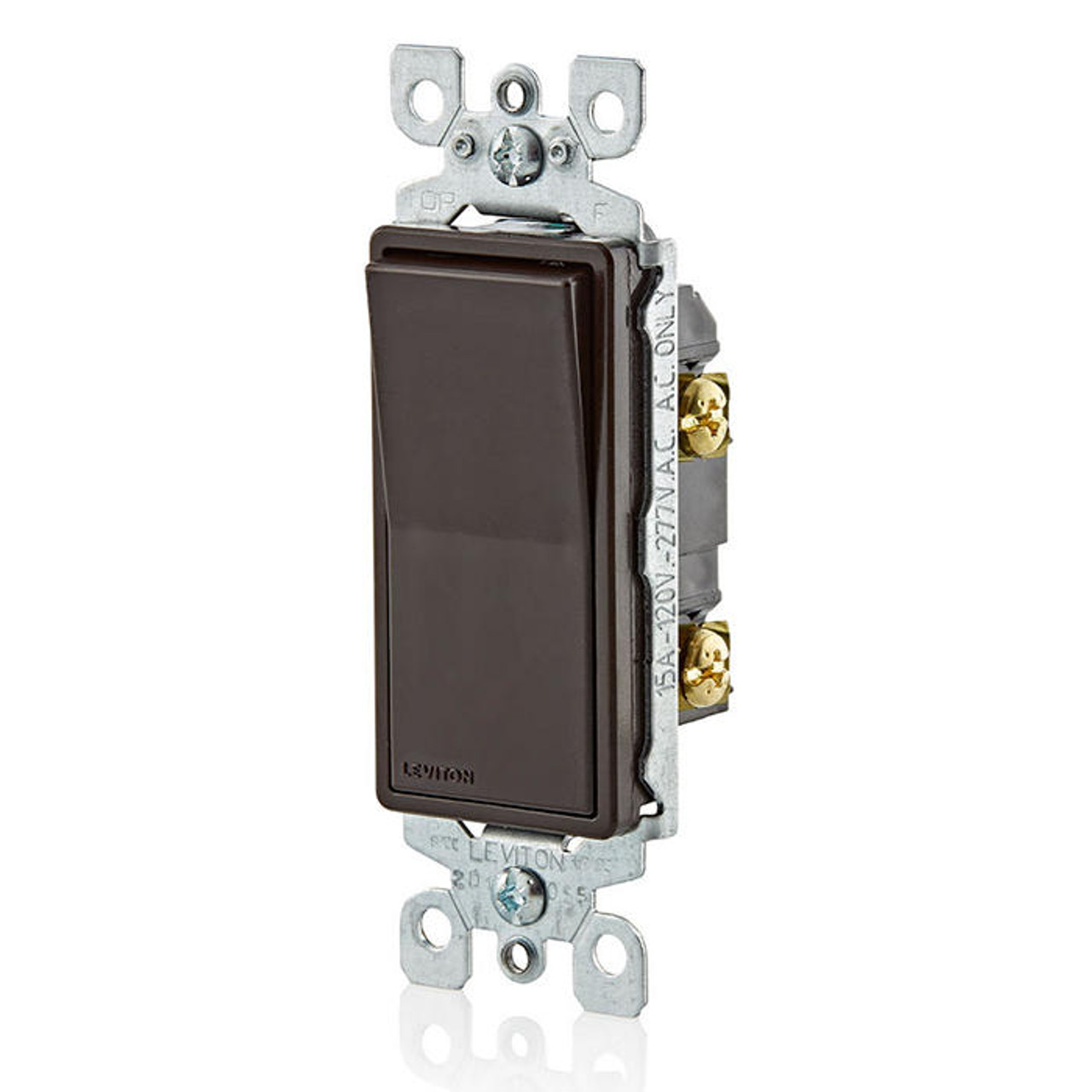

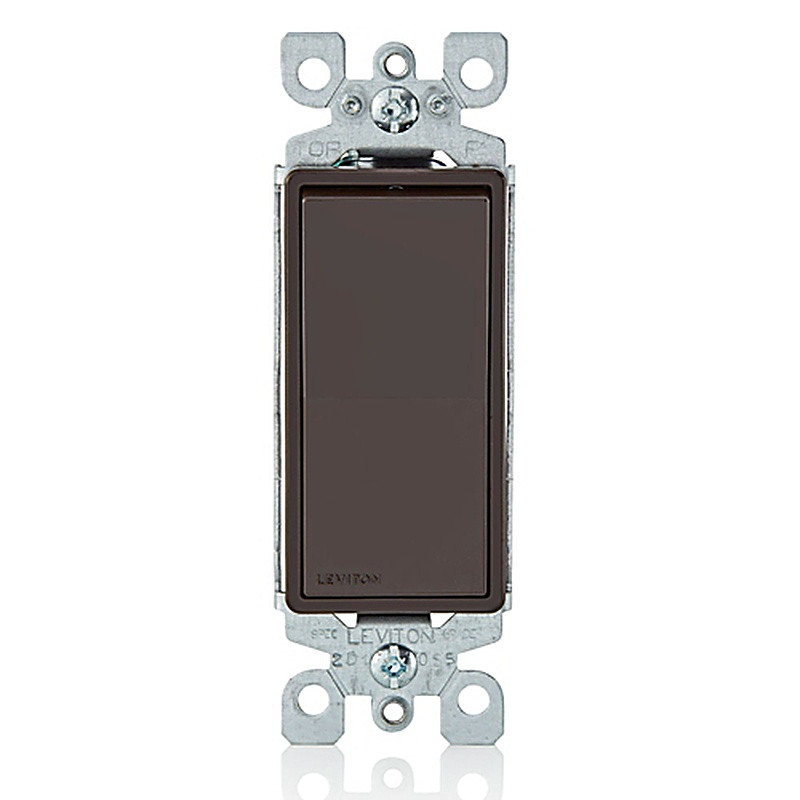

Leviton 5601-2 Brown 15A Decora Rocker Single-Pole Switch offers a quiet, durable, and reliable solution for controlling loads from a single location. Designed with impact-resistant thermoplastic materials and Quickwire push-in plus side wiring options, this residential-grade switch delivers dependable performance and easy installation.
Product Summary
- Brand: Leviton
- Catalog Number: 5601-2
- Type: Decora Rocker Single-Pole Switch
- Amperage: 15A
- Voltage: 120/277 VAC
- Grounding: Yes
- Color: Brown (also available in White, Light Almond, Black, Gray, Ivory)
- Horsepower Rating: 1/2 HP at 120V; 2 HP at 240V/277V (max 12A)
- Warranty: 2-Year Limited
- Free shipping on orders over $250
Benefits
- Convenient single-pole control for lights or loads from one location.
- Durable impact-resistant thermoplastic body and actuator.
- Easy installation with Quickwire push-in and side wiring terminals.
- Versatile compatibility with Leviton Decora wallplates to match any décor.
Key Features
- Single-Pole Operation: Controls one load from a single location.
- 15A, 120/277 VAC rating supports residential and light commercial applications.
- Horsepower Rated: 1/2 HP at 120V, 2 HP at 240V/277V (max 12A).
- Grounding: Self-grounding strap included.
- Construction: Thermoplastic actuator and body with steel strap.
- Terminals: Side wire accepts #10, #12, #14 copper (CU) or copper-clad (CC) conductors; Quickwire push-in accepts #14 CU solid only.
- Torque Range: 14–18 in.-lbs.
- Certifications: UL / CSA listed, RoHS compliant.
Specifications
Technical Specs
| Catalog Number | 5601-2 |
| Device Type | Decora Rocker Single-Pole Switch |
| Amperage | 15A |
| Voltage | 120/277 VAC |
| Pole | 1 |
| Grounding | Yes |
| Horsepower Rating | 1/2 HP at 120V, 2 HP at 240V/277V (Max 12A) |
| Termination | Quickwire Push-In & Side |
| Terminal Accommodation | Side wiring accepts #10–#14 AWG CU or #10–#12 CC; Quickwire push-in accepts #14 CU solid |
| Torque Range | 14–18 in.-lbs |
Physical Specs
| Actuator Material | Thermoplastic |
| Body Material | Thermoplastic |
| Strap Material | Steel |
| Color | Brown (also available in White, Light Almond, Black, Gray, Ivory) |
Performance & Compliance
| Standards | UL / CSA |
| RoHS Compliant | Yes |
| Warranty | 2-Year Limited |
| Country of Origin | United States |
| UPC Code | 078477517000 |
Applications
- Residential lighting and receptacle control
- Office and light commercial installations
- Renovation or retrofit projects requiring a quiet, reliable rocker switch
- Compatible with Leviton Decora wallplates for a modern appearance
Installation Tips
- Turn off circuit power before beginning installation.
- Use side or push-in wiring per conductor type (#14 CU solid for push-in).
- Tighten terminals to 14–18 in.-lbs torque.
- Use with a properly grounded/bonded flush device box (in Canada, grounding wire not required in bonded boxes).
- Finish with a Leviton Decora wallplate for best fit and appearance.
FAQ
What type of switch is the Leviton 5601-2?
It is a 15A, 120/277V Decora rocker single-pole switch with grounding.
What wiring options does it support?
The switch supports side wiring for #10–#14 AWG copper or copper-clad wire and Quickwire push-in terminals for #14 solid copper wire:contentReference[oaicite:1]{index=1}.
Is this switch suitable for motor loads?
Yes. It is horsepower-rated at 1/2 HP (120V) and 2 HP (240V/277V, max 12A).
Does the switch require grounding?
Yes, the device includes grounding. In Canada, a general-use switch in a grounded box does not require a separate bonding wire:contentReference[oaicite:2]{index=2}.
What materials are used in construction?
The body and actuator are thermoplastic, while the strap is steel for added strength.
Does it include a warranty?
Yes, the Leviton 5601-2 carries a 2-year limited warranty.
Where is it manufactured?
This switch is manufactured in the United States:contentReference[oaicite:3]{index=3}.
