Product Description
441SQ-W-WH 4" Low Voltage Square Lensed Downlight Shower Trim, White Trim is a Juno 4" square lensed downlight trim engineered for wet-location areas such as showers and bathrooms. It pairs with Juno 4" low-voltage MR16 housings and provides smooth 35° vertical aiming with a protective lens for comfortable, controlled illumination.
Product Summary
- 441SQ-W-WH — 4" square lensed downlight shower trim; white reflector and white trim ring
- Lamp: MR16 (up to 50W, per compatible housing)
- Aiming: 35° vertical adjustment
- Outside dimension: approx. 5" square (nominal)
- Location: Wet location suitable for showers (lensed design)
Free shipping on orders over $250
Benefits
- Shower-ready safety with a sealed lens for wet-location installations.
- Modern square aperture complements contemporary bath designs.
- Precise aiming up to 35° to direct light where it’s needed and minimize glare.
- Flexible MR16 lamping supports multiple beam spreads and CCTs.
Key Features
- Lensed construction for wet areas and easy cleaning.
- White trim ring provides a clean transition to the ceiling plane.
- Adjustable mechanism supports up to 35° vertical tilt.
- Square form factor aligns with modern architectural lines.
Specifications
Technical Specs
| Model | 441SQ-W-WH — Square lensed downlight shower trim |
| Lamp Type | MR16 (check housing/transformer rating; typically up to 50W) |
| Aiming Range | Up to 35° vertical |
Physical Specs

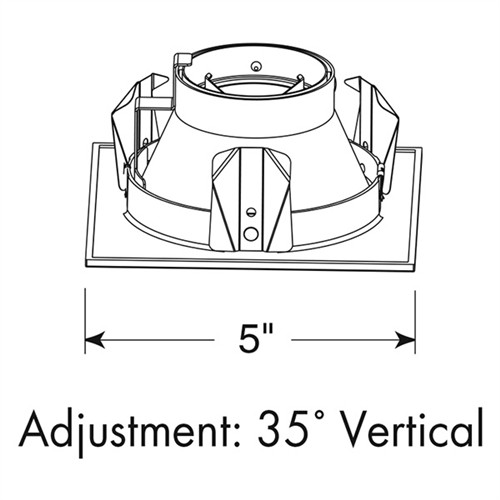

| Trim Shape | Square, nominal 4" aperture (~5" OD) |
| Finish | White reflector and white trim ring |
| Location Rating | Wet location (shower suitable) |
Compatible Juno 4" Low-Voltage Housings
- IC: IC44N, IC44NW, IC44NS (4" IC New Construction)
- Non-IC: TC44, TC44V, TC44S (New Construction), TC44R (Remodel)
Application Examples
- Showers, baths, and spa areas requiring a wet-location trim
- Residential or hospitality bathrooms with modern square aesthetics
- Covered outdoor damp/wet areas where a lensed trim is preferred
Installation Tips
- Use with a compatible Juno 4" low-voltage housing listed above.
- Confirm gasket/lens are properly seated to maintain the wet-location seal.
- Select MR16 lamp wattage and beam spread to suit the space; avoid excessive heat in confined ceilings.
- After aiming up to 35°, verify glare control from typical viewing angles.
FAQ
Q: Is 441SQ-W-WH shower rated?
A: Yes. It is a lensed downlight trim listed for wet locations and suitable for showers.
Q: Which housings are compatible?
A: Juno IC44N/IC44NW/IC44NS, TC44/TC44V/TC44S, and TC44R 4" low-voltage housings.
Q: What lamp type does it use?
A: MR16 (check housing for transformer type and maximum wattage, typically up to 50W).
Q: How far can I aim the light?
A: Up to 35° vertical tilt for precise placement.
Q: What are the trim dimensions?
A: Nominal 4" square aperture with an outside dimension of approximately 5" square.
Q: Does it include the housing?
A: Trim and housing are ordered separately and typically ship separately.
