Product Description

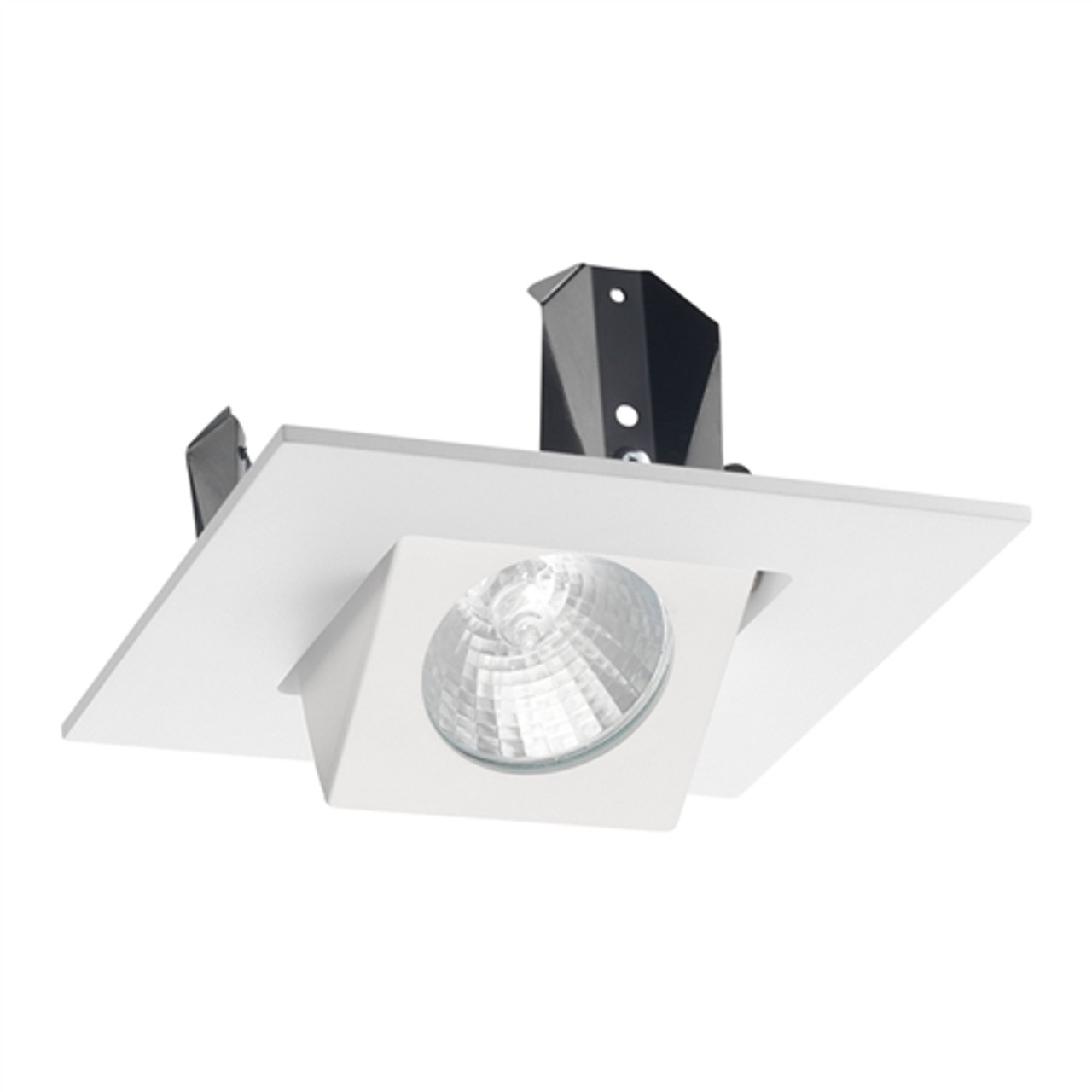

Juno 440SQ-WH 4" Low Voltage Square Adjustable Flush Gimbal Downlight Trim delivers a clean, modern square aesthetic with directional aiming for precise accent or task lighting. The white trim integrates seamlessly with compatible 4" Juno housings and MR16 GU10 lamps, making it a reliable choice for residential and light commercial applications.
Product Summary
- 440SQ-WH square adjustable flush gimbal trim
- Finish: White
- Aiming: 35° vertical adjustment (gimbal)
- Lamp Base: GU10 (MR16, line voltage)

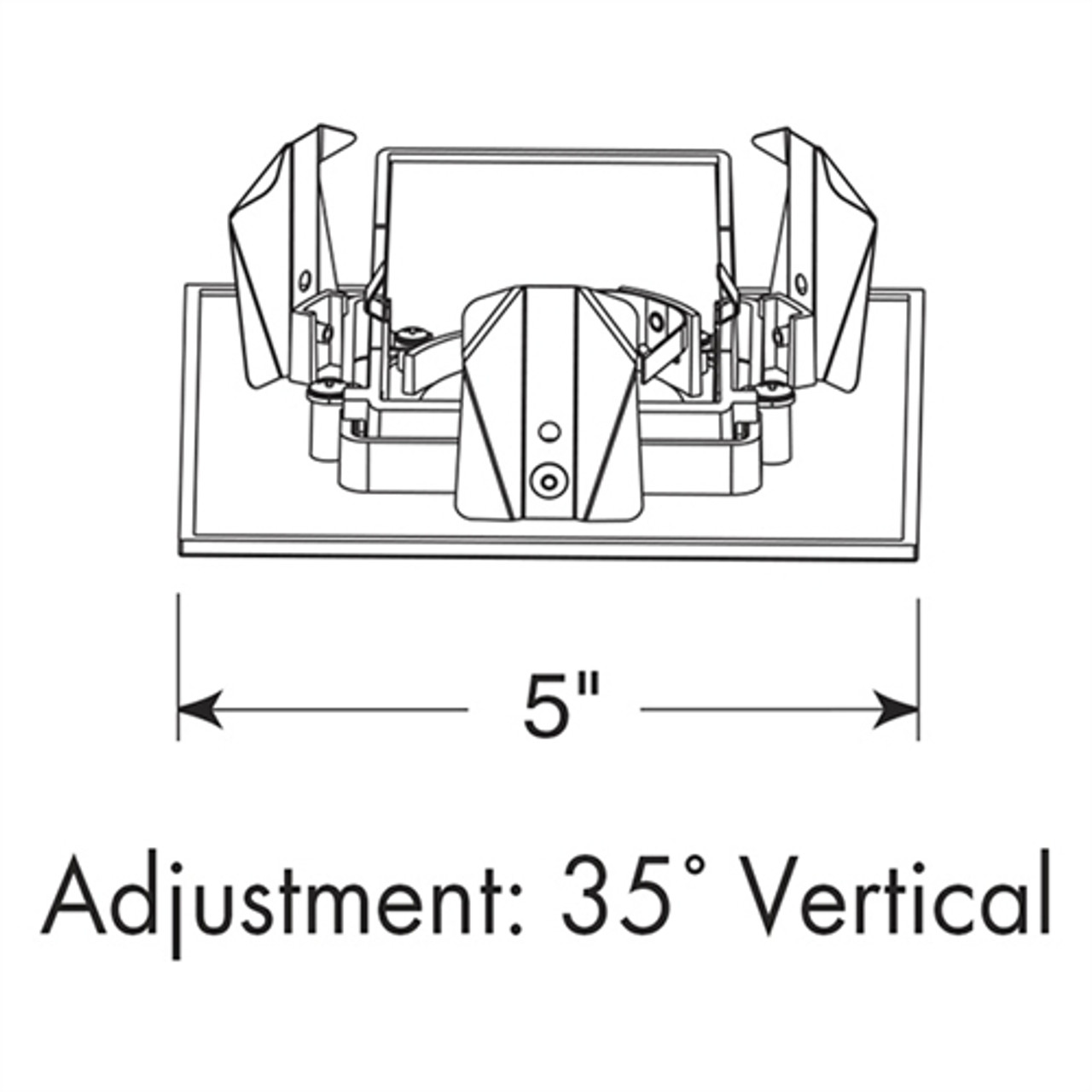

- Overall Trim Size: 5" x 5"
- Required Accessory: Juno GU10-WHIP
Housing / Lamp Compatibility
| Housing Series | Max Lamp |
|---|---|
| IC1 / IC1W / IC1S | 35W MR16, 120V GU10 |
| IC1P / TC1 / TC1S / TC1R | 50W MR16, 120V GU10 |
Note: All configurations require Juno part GU10-WHIP.
Brand: Juno
SKU: 440SQ-WH
Category: 4" recessed lighting trim
Shipping: Free shipping on orders over $250
Product Benefits
- Targeted illumination: 35° gimbal lets you aim light for art, displays, or task zones.
- Clean square aesthetic: Flush design provides a modern, minimal look in finished ceilings.
- Line-voltage simplicity: Uses MR16 GU10 lamps—no remote transformer required.
- Proven compatibility: Designed for popular Juno 4" housings for straightforward specification and installs.
Key Features
- Square adjustable flush gimbal for precise vertical aiming up to 35°.
- White trim finish blends with most ceilings for a discreet appearance.
- MR16 GU10 lamping (120V) for easy sourcing and maintenance.
- Compatible housings: IC1/IC1W/IC1S (35W max) and IC1P/TC1/TC1S/TC1R (50W max).
- Required accessory: Juno GU10-WHIP for proper connection.
Specifications
Technical Specs
| Model | 440SQ-WH |
| Trim Style | Square adjustable flush gimbal |
| Finish | White |
| Aiming Range | Up to 35° vertical |
| Required Accessory | Juno GU10-WHIP |
Physical Specs
| Trim Size | 5" x 5" |
| Ceiling Opening | For compatible 4" Juno housings |
Performance & Electrical
| Lamp Type | MR16 GU10, line voltage (lamp by others) |
| Max Wattage (IC1/IC1W/IC1S) | 35W |
| Max Wattage (IC1P/TC1/TC1S/TC1R) | 50W |
Application Examples
- Accent lighting for artwork, shelving, and architectural features
- Task lighting for kitchen islands, counters, and worktops
- Retail and hospitality downlighting with directional aim
- Corridors and entries requiring focused illumination
Installation Tips
- Verify housing: Use only with compatible Juno 4" housings listed above.
- Use GU10-WHIP: Ensure the required whip is installed for GU10 lamp connection.
- Power off: Turn off branch circuit power before installation or lamping.
- Respect wattage limits: Do not exceed 35W or 50W maximums per housing series.
- Aim after install: Set gimbal angle (up to 35°) to highlight the target area and minimize glare.
Frequently Asked Questions
Does the 440SQ-WH include a lamp?
No. This trim is designed for MR16 GU10 lamps (120V) supplied by others.
Which housings work with this trim?
Juno IC1/IC1W/IC1S (35W max) and IC1P/TC1/TC1S/TC1R (50W max). Use the GU10-WHIP accessory.
How much adjustment does the gimbal provide?
The flush gimbal allows up to 35° of vertical aiming for precise light placement.
Is a transformer required?
No. The trim uses line-voltage MR16 GU10 lamps at 120V.
Can I use LED MR16 GU10 lamps?
Yes, choose GU10-base MR16 lamps that fit the housing and respect the listed wattage limits.
What ceiling opening is needed?
Use the standard opening for compatible Juno 4" housings; the finished trim measures approximately 5" x 5".
Is the GU10-WHIP really required?
Yes. All configurations using this trim require the Juno GU10-WHIP for proper lamp connection.
Where is this trim best used?
Ideal for accents, task areas, retail displays, and anywhere a modern square aesthetic with aimable light is desired.
