Product Description

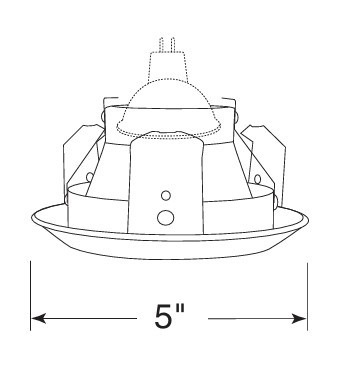

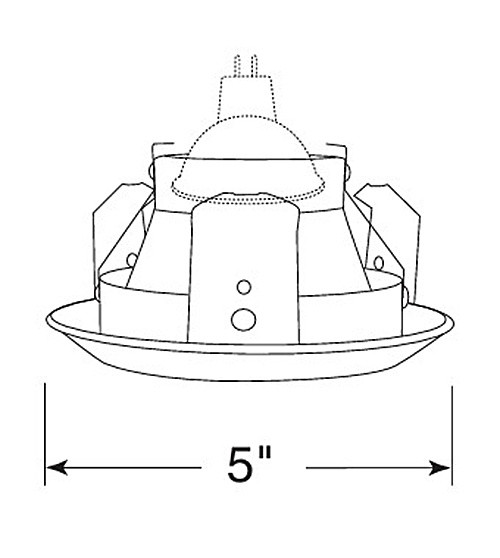

Juno 4402-WH 4" Low Voltage Frosted Regressed Perimeter Glass Lensed Trim delivers a refined, soft-edged light output ideal for accent or ambient illumination. Featuring a frosted regressed perimeter glass lens with a clean white trim finish, it combines visual comfort with stylish design—perfect for residential and commercial recessed lighting applications.
- Catalog #: 4402-WH
- Trim Type: Regressed Perimeter Frosted Glass Lens
- Finish: White Trim
- Max Lamp Rating: 50W MR16
- Adjustment: 30° Vertical
- Compatible Housings: IC44, TC44, TC44R (not for TC47 series)
- Aperture: 4” nominal
Free shipping on orders over $250
Quick shipping, expert support, and reliable quality from Juno Lighting.
Benefits
- Soft, diffused illumination through a frosted regressed glass lens minimizes glare.
- Elegant white trim complements modern and traditional interiors.
- Adjustable 30° aiming for directional or accent lighting flexibility.
- Precision-engineered for IC44, TC44, and TC44R series housings.
Key Features
- Regressed frosted perimeter glass for refined light distribution.
- 30° vertical adjustment for optimal aiming control.
- 50W MR16 maximum lamp rating for bright, efficient output.
- White trim finish provides a clean, seamless ceiling appearance.
- Not for use with TC47 housings for compatibility and safety assurance.
Specifications
Technical Specs
| Lamp Type | MR16 (50W max) |
| Adjustment | 30° Vertical |
| Housing Compatibility | IC44, TC44, TC44R |
| Not Compatible | TC47 Series |
Physical Specs
| Aperture | 4” nominal |
| Trim Finish | White |
| Lens Type | Frosted Regressed Perimeter Glass |
Performance Specs
| Max Wattage | 50W |
| Voltage | Low Voltage (12V typical) |
Compliance & Safety
| Certifications | Refer to housing certification (trim not UL listed independently) |
| Usage Notes | Not for use with TC47 series housings |
Application Examples
- Residential accent and task lighting
- Retail or hospitality settings requiring diffused perimeter light
- Corridors, entryways, and alcoves with soft illumination
- Ceiling designs calling for minimal glare and refined visual appearance
Installation Tips
- Verify housing compatibility before installation (IC44, TC44, TC44R).
- Use only MR16 lamps rated at or below 50W.
- Allow for 30° adjustment to fine-tune the lighting direction.
- Ensure the frosted glass lens is seated correctly to maintain diffusion.
- Do not install with TC47 housings.
Frequently Asked Questions
What is the Juno 4402-WH trim used for?
This trim provides a soft, regressed perimeter light ideal for accent or ambient illumination in residential and commercial environments.
Which housings are compatible with the 4402-WH trim?
It is designed for IC44, TC44, and TC44R housings, but is not compatible with TC47 housings.
What lamp type does it support?
The 4402-WH trim supports up to a 50W MR16 lamp.
Can the trim be adjusted?
Yes, it allows for a 30° vertical adjustment for precise light direction.
Is this trim suitable for damp locations?
Check the housing rating; the trim itself is not independently listed for damp locations.
Does it include a lens?
Yes, it includes a frosted regressed perimeter glass lens for soft diffusion.
What finish is available for this model?
The 4402-WH comes in a white trim finish. Other finishes such as aged bronze (4402-ABZ) and satin chrome (4402-SC) are available separately.
