Product Description

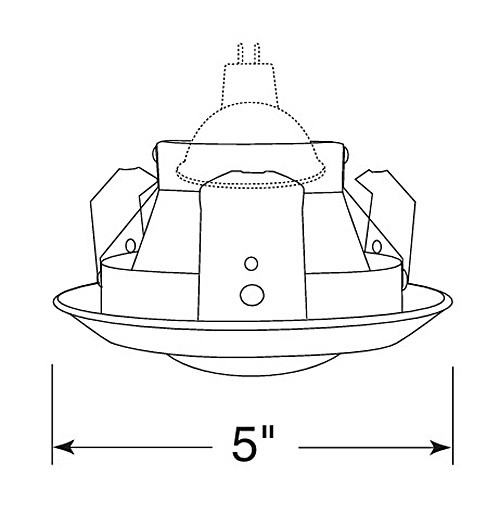

4401-WH 4" Low Voltage Frosted Glass Dome Lensed Trim, White Trim by Juno is a clean, decorative lensed trim for 4" low-voltage recessed housings. Featuring a frosted glass lens and white trim ring, it provides soft, comfortable illumination for residential, hospitality, and retail applications.
4401-WH Frosted Glass Lensed Trim
Brand: Juno
Finish: White (WH)
Category: 4" Low-Voltage Lensed Trim
Free shipping on orders over $250
- Max lamp: 50W MR16 (per housing rating)
- Compatibility: Fits Juno IC44, TC44 & TC44R housings
- Not for use with: TC47 series housings
- Application: Soft, diffused illumination with frosted lens
Product Benefits
- Softer visuals: the frosted glass lens diffuses the lamp image to reduce glare and hotspots.
- Simple upgrade: refreshes existing 4" Juno low-voltage housings without remodeling.
- Flexible lamping: works with commonly available MR16 lamps up to 50W (or compatible LED replacements per housing limits).
- Consistent look: clean white trim ring complements most ceiling finishes.
Key Features
- Frosted glass lensed design for comfortable, diffused output.
- White trim ring (WH) for a minimal, unobtrusive appearance.
- Maximum 50W MR16 lamp rating (observe housing limits).
- Housing compatibility: IC44, TC44, TC44R; not compatible with TC47.
Specifications
Technical Specs
| Model | 4401-WH (Frosted Glass Lens, White Trim) |
| Max Lamp Rating | 50W MR16 (check housing/transformer rating) |
| Compatible Housings | IC44, TC44, TC44R (4" low-voltage) |
| Not Compatible | TC47 series housings |
Physical Specs
| Trim Style | Round lensed trim with frosted glass; fixed downlight |
| Finish | White (WH) |
Performance & Compliance
| Lamp Type | Low-voltage MR16 (line-voltage not supported for this trim) |
| Use Locations | Per housing rating (dry/damp). For wet/shower locations, choose a dedicated wet-listed trim. |
Application Examples
- Residential halls, living areas, and kitchens needing soft, diffused light
- Hospitality corridors, lounges, and common areas
- Boutique retail displays and perimeter lighting
- Offices and reception spaces seeking glare-reduced downlighting
Installation Tips
- Verify housing: install only into Juno IC44, TC44, or TC44R; do not use with TC47.
- Power off the circuit before replacing trims or lamps.
- Observe wattage limits: do not exceed 50W MR16; use compatible LED MR16s as allowed by the housing/transformer.
- Seat the trim fully: ensure the lens and trim ring are secure and flush to the ceiling plane.
- Clean gently: use a soft, lint-free cloth on the frosted lens; avoid abrasives on the trim finish.
FAQ
Which housings are compatible with 4401-WH?
It fits Juno IC44, TC44, and TC44R 4" low-voltage housings and is not for use with TC47 series housings.
What lamp type and wattage does it support?
Up to 50W MR16 (or compatible LED MR16 per housing/transformer limits).
Is this trim adjustable?
No—4401-WH is a fixed, lensed downlight trim; aiming adjustments depend on the housing model.
Is it suitable for wet locations?
Use per the housing rating (typically dry/damp). For showers/wet areas, select a wet-listed trim.
What finish is the trim ring?
White (WH) with a frosted glass lens appearance.
