Product Description
4150MESH-SC 4" LED, Line Voltage Mesh Glass Cylinder Trim, Satin Chrome Trim by Juno is a decorative 4-inch trim featuring a mesh glass cylinder and satin chrome ring. It’s designed for Juno’s line-voltage 4" housings (including LED Gen 4) and supports PAR20/R20 lamping for crisp accent or ambient effects in hospitality, retail, and residential spaces.
4150MESH-SC Mesh Glass Cylinder Trim
Brand: Juno
Finish: Satin Chrome (SC)
Aperture: 2-5/8"
Free shipping on orders over $250
- Series: 4" Line Voltage Trim Series

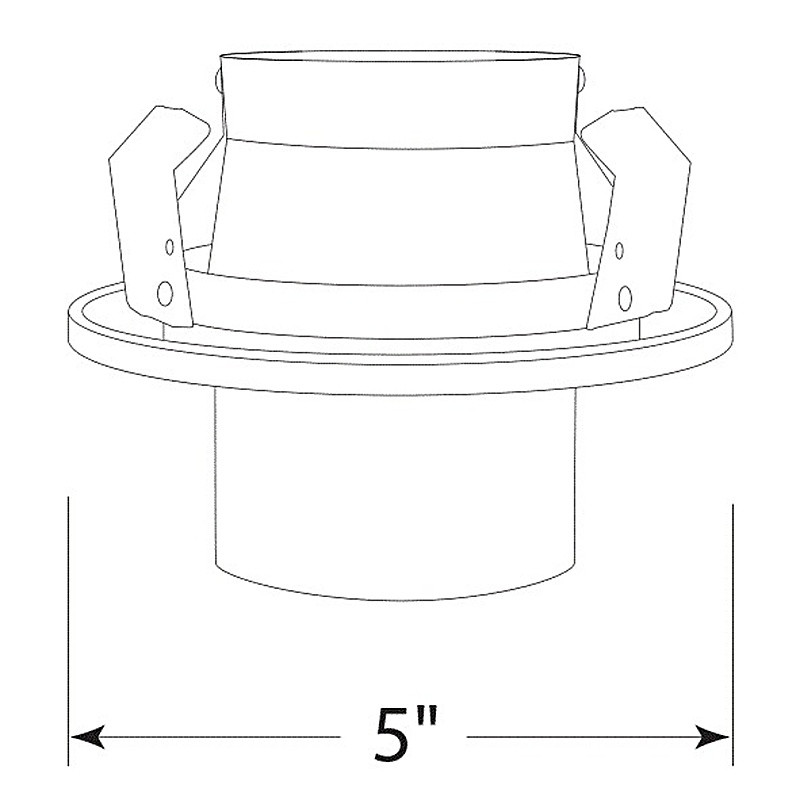

- Overall trim diameter: 5"
- Max lamp: 50W PAR20 / 50W R20 (per housing)
- Compatible housings: IC1/IC1W/IC1S/IC1P, TC1/TC1S/TC1R/TC1RCW, APT1, PL/ICPL compact fluorescent, and IC1LEDG4/IC91LEDG4 LED series
Compatibility, aperture, and dimensions per Juno 4" Line Voltage Trim Series datasheet.
Product Benefits
- Elevated ceiling aesthetics: the chrome mesh glass cylinder adds a refined, modern shimmer without visible hardware.
- Easy upgrades: drop-in trim refreshes existing Juno 4" housings across multiple generations, including LED G4.
- Flexible lamping: supports common PAR20/R20 line-voltage lamps (and compatible LED replacements) for quick specification on mixed projects.
- Consistent cutout visuals: 2-5/8" aperture creates a clean, focused appearance suitable for corridors, foyers, and retail floors.
Key Features
- Mesh glass cylinder with satin chrome trim ring for decorative sparkle.
- 4" line-voltage family compatibility across IC/Non-IC, remodel, and new-construction housings.
- 2-5/8" aperture, 5" overall trim diameter for a balanced ceiling presentation.
- Max 50W PAR20 / 50W R20 (observe housing limits; some housings specify 30W R20).
Specifications
Technical Specs
| Model | 4150MESH-SC (Mesh Glass, Satin Chrome) |
| Compatible Housings (Line Voltage) | IC1, IC1W, IC1S, IC1P; TC1, TC1S, TC1R, TC1RCW; APT1; PL426/418/413 & ICPL426/418/413 (CF); IC1LEDG4/IC1RLEDG4/IC1LWDG4N/IC1RLWDG4N; IC91LEDG4/IC91RLEDG4/IC91LWDG4/IC91RLWDG4. |
| Lamp Compatibility | PAR20 and R20 (typically up to 50W; some housings specify 30W R20). |
Physical Specs
| Aperture | 2-5/8" (visible opening). |
| Overall Trim Diameter | 5". |
| Style | Glass cylinder with chrome mesh; satin chrome trim ring. |
Performance & Compliance
| Use Locations | Per housing rating (dry/damp). Follow housing installation instructions. |
Application Examples
- Bars, lounges, and restaurants seeking a subtle metallic shimmer
- Boutique retail displays and merchandising runs
- Residential foyers, corridors, and feature niches
- Hotel corridors and elevator lobbies coordinating with satin chrome finishes
Installation Tips
- Confirm housing: install only into listed 4" Juno housings; observe each housing’s lamp limits.
- Power off the circuit before changing trims or lamps.
- Use correct lamping: PAR20/R20 up to the housing’s rated wattage; LED MR16/PAR20 replacements may be used if compatible with the housing/transformer (where applicable).
- Seat the trim fully: ensure the cylinder and ring are secure and flush for uniform aesthetics.
- Clean gently: wipe mesh glass with a soft, lint-free cloth; avoid abrasives on the chrome finish.
FAQ
Which housings are compatible with 4150MESH-SC?
IC1/IC1W/IC1S/IC1P, TC1/TC1S/TC1R/TC1RCW, APT1, PL/ICPL compact fluorescent, and the IC1LEDG4/IC91LEDG4 LED series are listed as compatible.
What is the aperture and overall diameter?
The visible aperture is approximately 2-5/8", and the overall trim diameter is 5".
What lamps can I use?
PAR20 and R20 line-voltage lamps up to 50W (some housings limit R20 to 30W). Compatible LED replacements may be used if they meet housing requirements.
Is this trim adjustable?
No—4150MESH-SC is a decorative downlight trim; aiming adjustments depend on the selected housing.
Is it wet-location rated?
Use per housing rating (dry/damp). For showers/wet locations, select a dedicated wet-listed trim.
Does the mesh glass reduce glare?
The cylinder helps soften the lamp image while adding a decorative, metallic texture at the aperture.
