Product Description

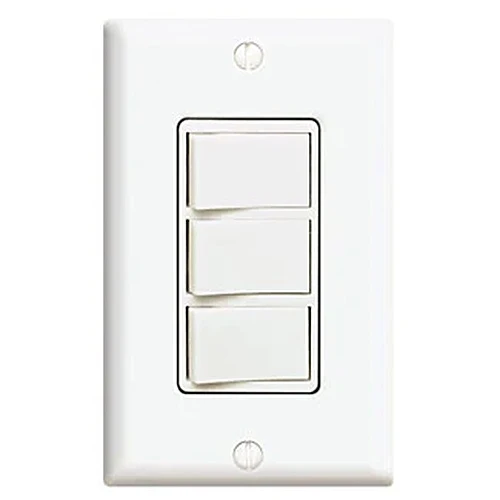

1755-W White Triplex Switch by Leviton is a 15 Amp Decora three-rocker combination switch designed to save space while providing independent control of three single-pole circuits. With a clean white finish, thermoplastic body, and part of the Decora line, it delivers durability and style for both residential and commercial installations.
Brand: Leviton
Type: Three Rocker Combination Switch
Amperage: 15A (per switch)
Voltage: 120 VAC
Operation: Single-Pole (x3)
Grounding: Non-Grounding
Material: Thermoplastic body & actuator
Strap: Steel
Color: White
Termination: Quickwire Push-In
Warranty: 2-Year Limited
Shipping: Free shipping on orders over $250
Product Benefits
- Space-saving design combines three switches into a single Decora device, reducing wall clutter.
- Durable thermoplastic body resists impact, wear, and maintains color over time.
- Quickwire push-in terminations simplify installation and reduce wiring time.
- Stylish Decora look blends seamlessly with matching wallplates and devices.
Key Features
- 15A per switch, with 20A total device rating.
- Single-pole operation for independent circuit control.
- Non-grounding design with ground screw terminal available.
- Impact-resistant thermoplastic actuator and body for long life.
- UL/CSA listed and RoHS compliant for safety and environmental standards.
Specifications
Technical Specs
| Catalog No. | 1755-W |
| Type | Three Rocker Combination Switch |
| Operation | Single-Pole x3 |
| Amperage | 15A per switch, 20A device total |
| Voltage | 120 VAC |
Physical Specs
| Body Material | Thermoplastic |
| Actuator Material | Thermoplastic |
| Strap | Steel |
| Termination | Quickwire Push-In |
Compliance & Safety
| Certifications | UL/CSA |
| Environmental | RoHS compliant |
| Torque Range | 14 – 18 in.-lbs |
| Warranty | 2-Year Limited |
| Country of Origin | Mexico |
Application Examples
- Hallways and stairways where multiple lights need independent control.
- Kitchens or bathrooms with fans, lights, and auxiliary devices.
- Space-constrained areas where multiple switches are needed without multiple gangs.
- Commercial and residential installations requiring a Decora-style finish.
Installation Tips
- Turn off power at the circuit breaker before installation.
- Use Quickwire push-in terminations for faster wiring; confirm 14–18 in.-lbs torque on terminals.
- Ensure correct polarity—hot wires to brass screws, load wires to push-in connections.
- Mount in a standard single-gang wallbox; pair with a matching Decora wallplate for best appearance.
FAQ
How many circuits can this control?
It can independently control three single-pole 120V circuits from one compact device.
What is the amperage rating?
Each switch is rated for 15A, with a combined total of 20A for the device.
Does it include a ground connection?
Yes. It provides a ground screw terminal but is designed as non-grounding.
Can it fit in a standard electrical box?
Yes. It installs in a standard single-gang box with compatible depth.
What material is it made of?
It features a thermoplastic actuator and body with a steel strap.
Is it compatible with Decora wallplates?
Yes. It is part of the Decora family and designed to match Decora wallplates.
Where is it manufactured?
This model is manufactured in Mexico.
Does it meet safety standards?
Yes. It is UL/CSA listed and RoHS compliant.
